Under FDA rules, "custom" is a narrow, legally defined category — and getting it wrong carries real regulatory risk. Meanwhile, demand for patient-specific solutions keeps climbing, from orthopedic implants to assistive devices built around individual anatomy.
This article breaks down the actual FDA definitions, the regulatory pathway custom devices follow, what goes into manufacturing them, and how to pick an engineering partner that won't leave you exposed during an audit.
Key Takeaways
- A custom device is a narrow FDA category under Section 520(b), not any made-to-order product
- FDA uses three risk-based classes (I, II, III), plus a separate custom device exemption pathway
- The exemption caps production at five units per year per device type, with mandatory annual reporting
- Prioritize material expertise and precision tooling to protect device safety, fit, and compliance
- ISO 13485 signals a manufacturer's commitment to medical-grade quality systems
What Are Custom Medical Devices?
Under Section 520(b) of the FD&C Act, the FDA defines a custom device narrowly. It must be created for a named patient or physician, address a rare condition with no commercial alternative, and be built case-by-case rather than for repeated use (FDA Custom Device Exemption Guidance).
To qualify, a device must generally meet all of these conditions:
- Made or modified per an individual physician's or dentist's order
- Deviates from an applicable performance standard or premarket approval requirement
- Not otherwise commercially available in finished form
- Addresses a sufficiently rare condition
- Meets the special needs of a specific practitioner or patient
- Assembled or finished on a case-by-case basis
FDA's own CDRH training materials illustrate this with two examples: an oversized hip replacement built beyond standard commercial size ranges, and a specialized surgical-instrument handle designed for a physician with a permanent hand injury (FDA CDRH Industry Basics).

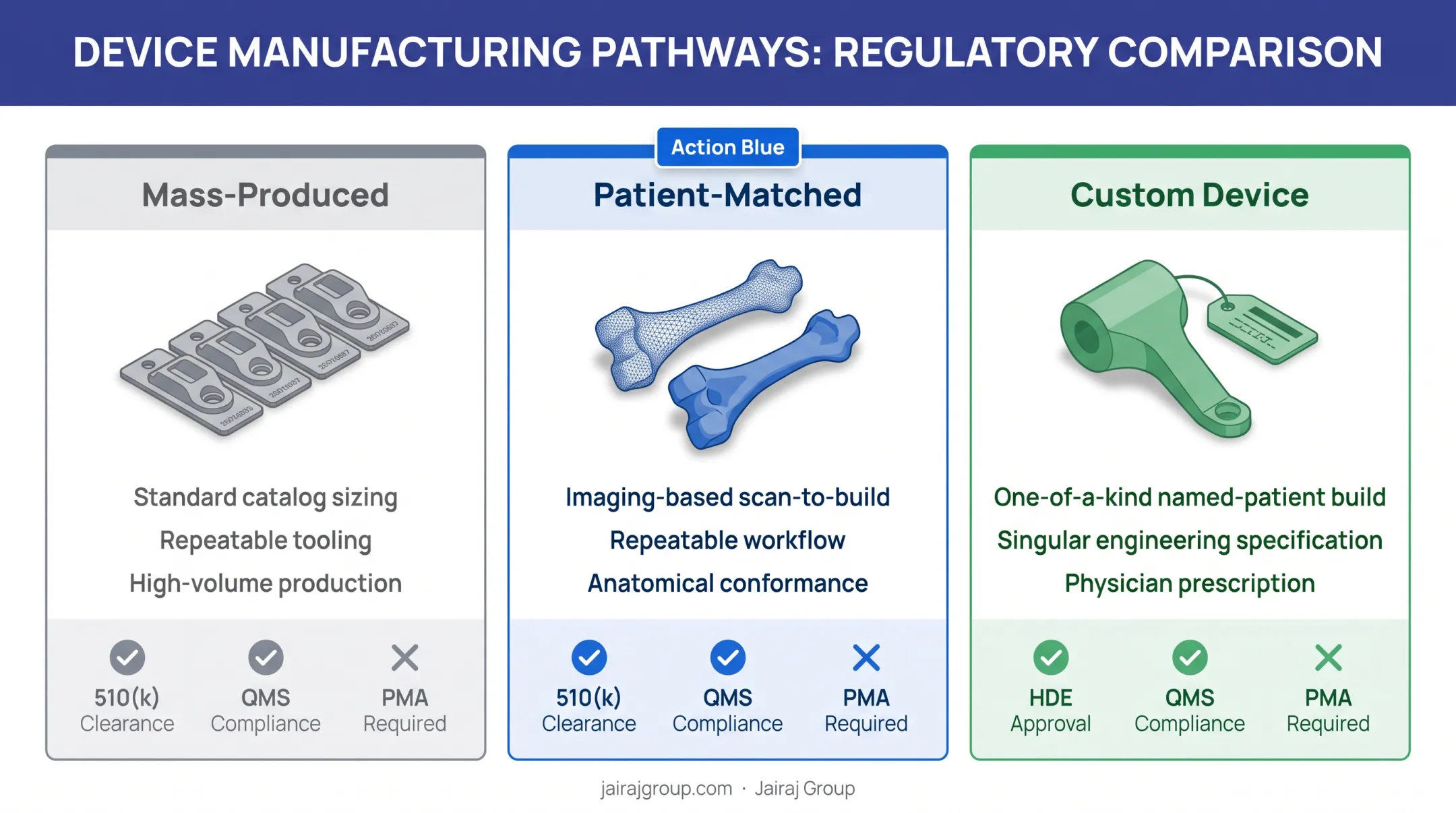

Custom vs. Mass-Produced vs. Patient-Matched Devices
Here's where confusion sets in. Changing a device's size, shape, or material for one patient doesn't automatically make it "custom" in the regulatory sense.
- Mass-produced devices — standard catalog items, even if offered in multiple sizes
- Patient-matched devices — designed from a patient's imaging data (for example, a 3D-printed orthopedic guide) but made through a controlled, repeatable process
- Custom devices — one-of-a-kind, built for a named individual, exempt from standard premarket pathways
FDA's guidance on patient-matched surgical guides explicitly separates these from custom devices, noting that patient-matched products follow a defined workflow: imaging, segmentation, provider concurrence, design, and validation (FDA Patient-Matched Guides Guidance). A patient-matched knee guide is not a "custom device" just because it is personalized.
US Regulatory Framework for Custom Medical Devices
FDA classifies devices into three risk tiers:
- Class I — lowest risk, general controls (bandages, handheld instruments)
- Class II — moderate risk, often requires 510(k) clearance (infusion pumps, powered wheelchairs)
- Class III — highest risk, generally requires Premarket Approval (implantable defibrillators)
Custom devices sit outside this ladder. A device that genuinely satisfies Section 520(b) is exempt from Premarket Approval (Section 515) and applicable performance standards under Section 514. It still must comply with establishment registration, device listing, and Good Manufacturing Practices.

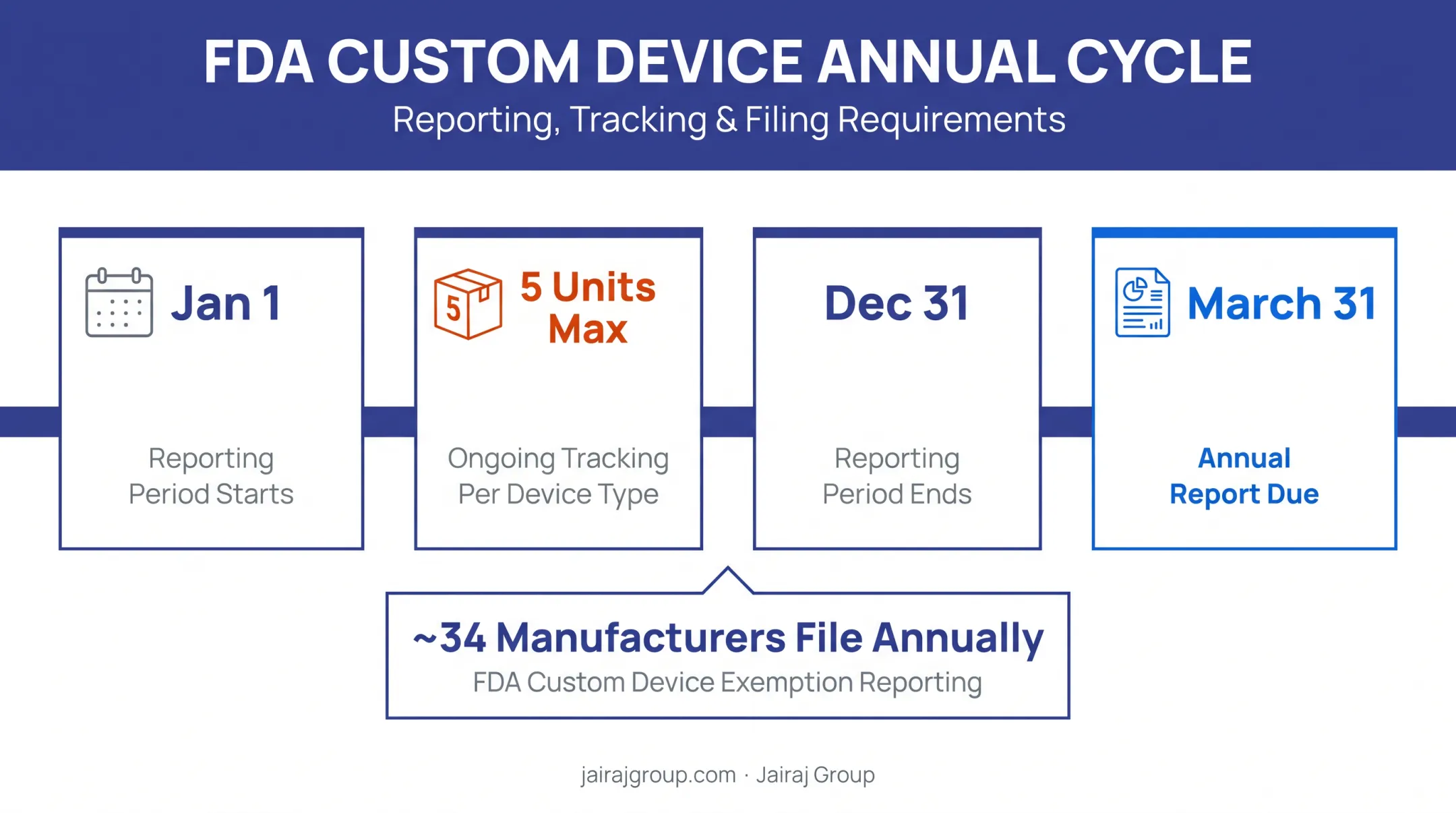

The Five-Unit Limit
This is the detail many manufacturers miss. FDASIA caps qualifying custom devices at no more than five units per year of a particular device type, generally read as five new patients or five new physicians annually for that device type (Federal Register, 2016).
Manufacturers must file an annual report covering January 1 through December 31, due by March 31 of the following year. Required elements include:
- Device identification and how it satisfies Section 520(b)
- Number of units shipped, used, returned, or destroyed
- Patient and physician information
- A signed truthful-and-accurate statement
A 2023 FDA notice estimated roughly 34 manufacturers file these reports annually, spending about 40 hours per response (FDA Federal Register Notice, 2023).
Misclassification carries real teeth. If a device type outgrows the five-unit cap, or the condition it treats is common enough to study, FDA expects a standard marketing application instead.
Treating a device as "custom" indefinitely—without moving to 510(k) or PMA—risks adulteration and misbranding liability. FDA cited that same exposure in a 2017 warning letter to a maker that shipped a materially changed product without a new submission.
ISO 13485 and FDA's QMSR
ISO 13485 is the international quality management standard for organizations that design, produce, install, and service medical devices. FDA's Quality Management System Regulation (QMSR), effective February 2026, incorporates ISO 13485:2016 directly into 21 CFR Part 820 (FDA QMSR).
Even manufacturers producing components, not finished devices, often pursue ISO 13485 because downstream device makers treat it as proof of consistent, documented quality control. Certification does not exempt anyone from FDA inspection.
Engineering and Manufacturing Considerations
Building a custom device component isn't just about hitting a CAD dimension. Material selection matters enormously, especially for anything implanted, housed near electronics, or load-bearing.
Common engineering polymers used in medical and assistive applications include:
- PEEK — high-strength, sterilizable, rated up to 260°C
- Polycarbonate (PC) — impact-resistant housings
- TPU — flexible, wearable-friendly, rated up to 120°C
- PA66-GF — glass-filled nylon for structural rigidity
- UHMW-PE and PTFE — low-friction, self-lubricating applications
Precision Tooling and Tight Tolerances

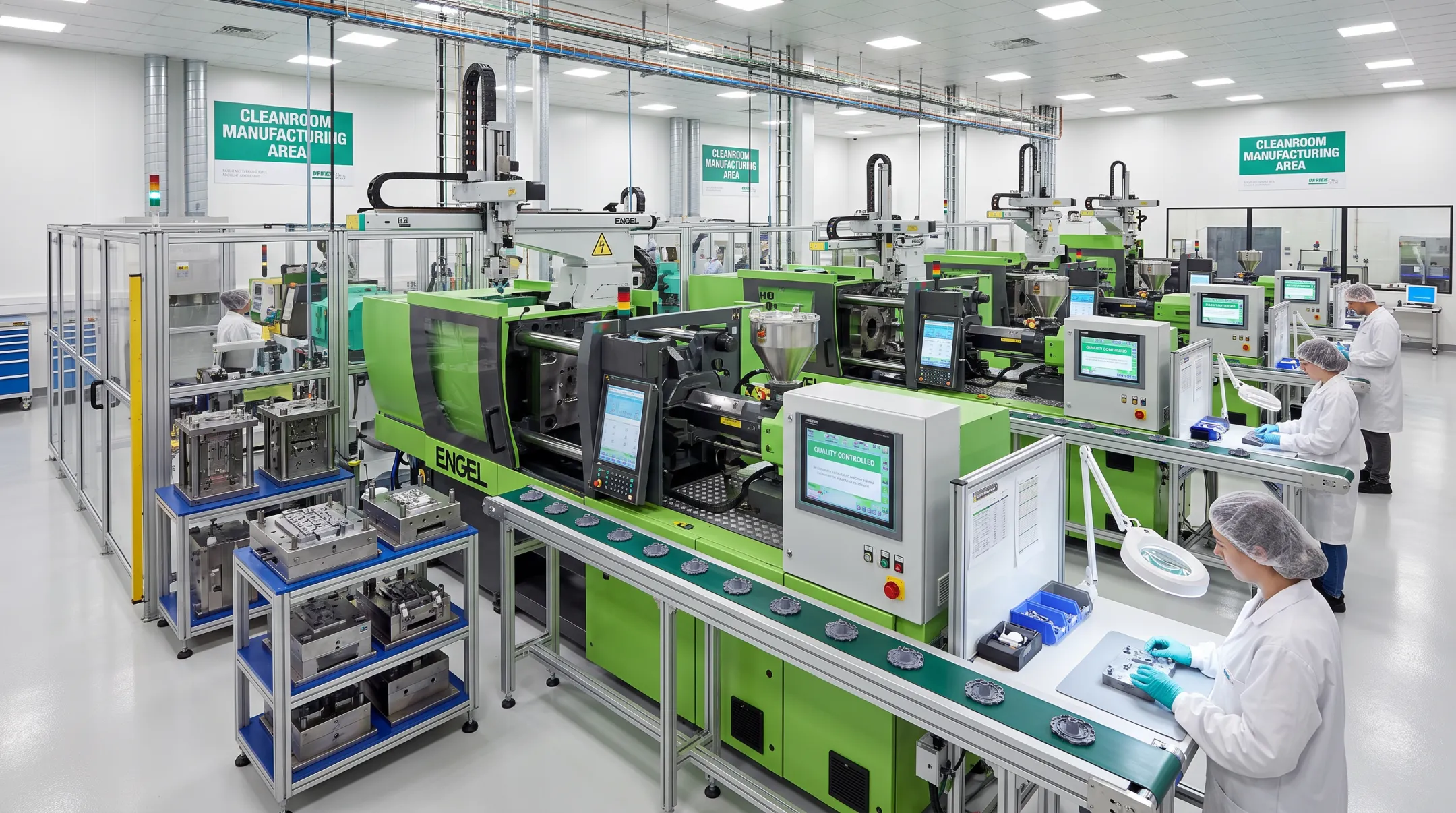

Patient-specific fit depends on tight dimensional control. This is where in-house tool rooms, precision injection molding, thermoforming, and CNC machining earn their keep, shortening iteration cycles when a design needs adjusting after clinical feedback.
At Jairaj Group, ISO 9001:2015-certified facilities pair PLC-controlled injection molding with in-house tooling for sensor housings, protective enclosures, ergonomic grips, and mobility-device structures. Documented processes cover precision injection molding, CNC machining, compression molding, insert molding, and overmolding.
Dimensional and functional testing is typically run in-house through R&D and value-engineering checks—fitment, durability, and stress performance—so a component can be tied back to a specific batch during a regulatory submission or audit.
Technology Is Compressing Timelines
That same pressure for tight fit and fast iteration is why additive manufacturing now shapes how quickly custom components move from design to delivery. A 2025 Medical Device Innovation Consortium case study on point-of-care 3D printing reported an 80% reduction in device design time and a 40% improvement in lead time at a hospital-based facility (MDIC Case Study).
FDA additive manufacturing guidance covers technical considerations for testing 3D-printed devices; it does not automatically qualify a 3D-printed device as "custom." The device still has to satisfy Section 520(b) independently of how it was made.
Key Benefits of Custom Medical Devices
Better anatomical fit shows up in clinical data, not only in marketing claims.
A 2022 retrospective study of 85 patients with orbital fractures found that patient-specific implants achieved a smaller volume discrepancy than preformed implants (4.2% vs. 6.8%, P = .03), though the difference in complication rates wasn't statistically significant (PubMed, 2022).
A separate 2023 published comparison of preformed titanium implants and patient-specific CAD/CAM implants found far lower positional deviation in the custom group (0–6.6% vs. 20%) and zero secondary revisions, versus 11.1% in the preformed group.
Beyond clinical fit, precision-engineered polymer components offer practical advantages:
- Lighter weight than metal alternatives, reducing strain on wearable and mobility devices
- Easier integration through insert molding, overmolding, and tight-tolerance mounting features
- Better protection for sensors and electronics via impact-resistant housings
These are documented material and design capabilities, not guaranteed outcomes for every application. Still, the research points in the same direction.
Choosing the Right Manufacturing Partner for Custom Medical Device Components
Not every plastics manufacturer is set up for medical work. Before committing to a partner, evaluate:
- Quality certifications: ISO 9001:2015 at minimum; ISO 13485 alignment matters for finished-device integration
- In-house tooling: cuts iteration time when clinical feedback forces a design change
- Testing infrastructure: dimensional, functional, and material verification with documented traceability
- Cross-industry experience: suppliers already serving automotive, aerospace, and defense know documentation-heavy, compliance-driven production
Jairaj Group works across regulated sectors, including automotive, aerospace, defense, and medical/assistive device components, and supplies OEMs such as Endurance Technologies, Gabriel India Limited, and Tenneco Automotive. In-house tooling, testing infrastructure, and full documentation support that same discipline: consistent processes and traceable component records device makers can file with their own regulatory submissions.
For iterative custom device development, responsiveness matters as much as capability. Design tweaks are inevitable once clinical feedback arrives. A partner who can revise a tool quickly without dropping documentation rigor saves time later in development.
Frequently Asked Questions
How do I import a medical device?
Importers must ensure the device is registered and listed with FDA, and that the declared manufacturer, shipper, and product listing match FDA's databases. Missing registration or listing can result in the shipment being refused at the border.
What are the four categories of medical devices?
FDA actually uses three classes (Class I, II, and III) based on risk level, not four. Separately, a custom device exemption exists for devices meeting Section 520(b) criteria, outside the standard classification pathway.
What does ISO 13485 stand for?
It's the international quality management system standard for organizations involved in designing, producing, installing, and servicing medical devices. FDA's QMSR now incorporates ISO 13485:2016 directly into US regulations.
Is a 3D printed device considered custom-made?
Only if it's built specifically for one patient's anatomy under a physician's order and meets all Section 520(b) criteria. The manufacturing method alone (3D printing) doesn't automatically qualify a device as custom.
Do custom-made medical devices need FDA approval?
Qualifying custom devices are exempt from Premarket Approval and applicable performance standards. However, they still require establishment registration, device listing, Good Manufacturing Practices, and annual reporting.
How long does it take to bring a custom medical device to market?
Timelines vary widely based on design complexity, the number of iterations needed, and how much documentation the regulatory pathway requires. Simple components may move faster than devices requiring extensive validation testing.
