The global market for compression-molding equipment is projected to grow from $721.1 million in 2025 to $946.6 million by 2033, according to Grand View Research. That growth tracks closely with automotive lightweighting and infrastructure investment.
Yet many engineers and buyers still confuse compression molding with injection molding, leading to poor material choices and mismatched tooling budgets. This guide breaks down how the process actually works, which materials fit best, and where compression molding earns its keep in modern manufacturing.
TL;DR
- Compression molding shapes a preheated material charge between two heated molds under pressure
- The process runs through four stages: initiation, core compression, curing/cooling, and part release
- Best suited for medium-to-large, simpler-geometry parts made from thermosets or thermoplastics
- Common in automotive, electrical, medical, and industrial component manufacturing
- Main difference from injection molding: how material enters the mold
What Is Compression Molding?
Compression molding places a measured, often preheated amount of material, called the charge, into an open mold cavity. Heat and pressure from two mold halves then force it into shape.
This approach avoids the tooling complexity and high injection pressures required by injection molding and other high-pressure processes. It is a straightforward way to produce large, high-strength composite or thermoset parts without a massive capital outlay.
What it's not:
- Injection molding, where material is injected into an already-closed cavity
- A match for highly intricate, thin-walled, or undercut-heavy designs
- A high-speed option when short cycle times are the priority
Despite newer molding technologies, compression molding stays relevant because of its lower tooling costs, minimal material waste, and strong fit for composite and thermoset parts.
Two material families dominate: thermosets and thermoplastics. The sequence differs slightly between them, mainly in whether the material cures chemically or simply cools.

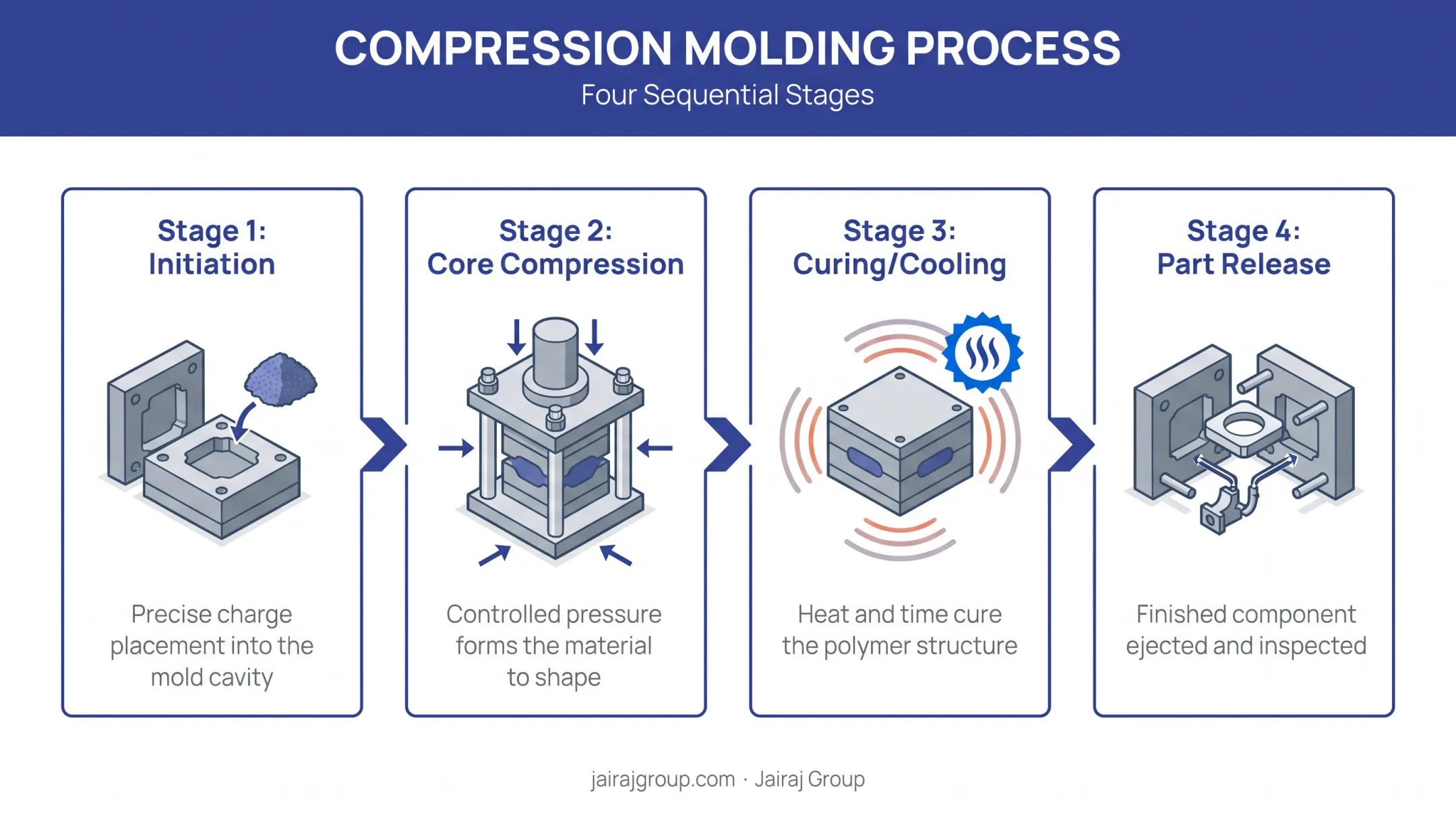

How Does Compression Molding Work?
The process follows a defined, multi-stage sequence. Each stage shapes final part quality.
Initiation
Setup starts with cleaning and heating the mold, then preparing and measuring the charge material. Charge placement can be manual or automated, depending on production scale.
Common early-stage issues:
- Incorrect charge sizing causes flash and material waste
- Improper preheating temperature prevents full mold-fill
- Rushed setup increases overall cycle time
Core Operation
The top mold closes onto the charge, applying pressure that forces the softened material to fill the entire cavity. What happens next depends on the material:
- Thermosets undergo irreversible chemical cross-linking (curing) triggered by heat
- Thermoplastics harden as they cool
Clamp tonnage, pressing speed, and mold temperature during this stage affect part strength and surface finish.
According to Beckwood Press, pressure requirements range from 25-200 psi for low-pressure applications up to 5,000-10,000+ psi for high-pressure jobs. Tonnage is calculated from pressure over the effective mold area, not a fixed universal figure.
Regulation and Control
Manufacturers monitor pressure, temperature, and hold time throughout the cycle to prevent warping, voids, or incomplete curing. Calibrated presses and multi-zone heating controls keep parameters consistent across production runs.

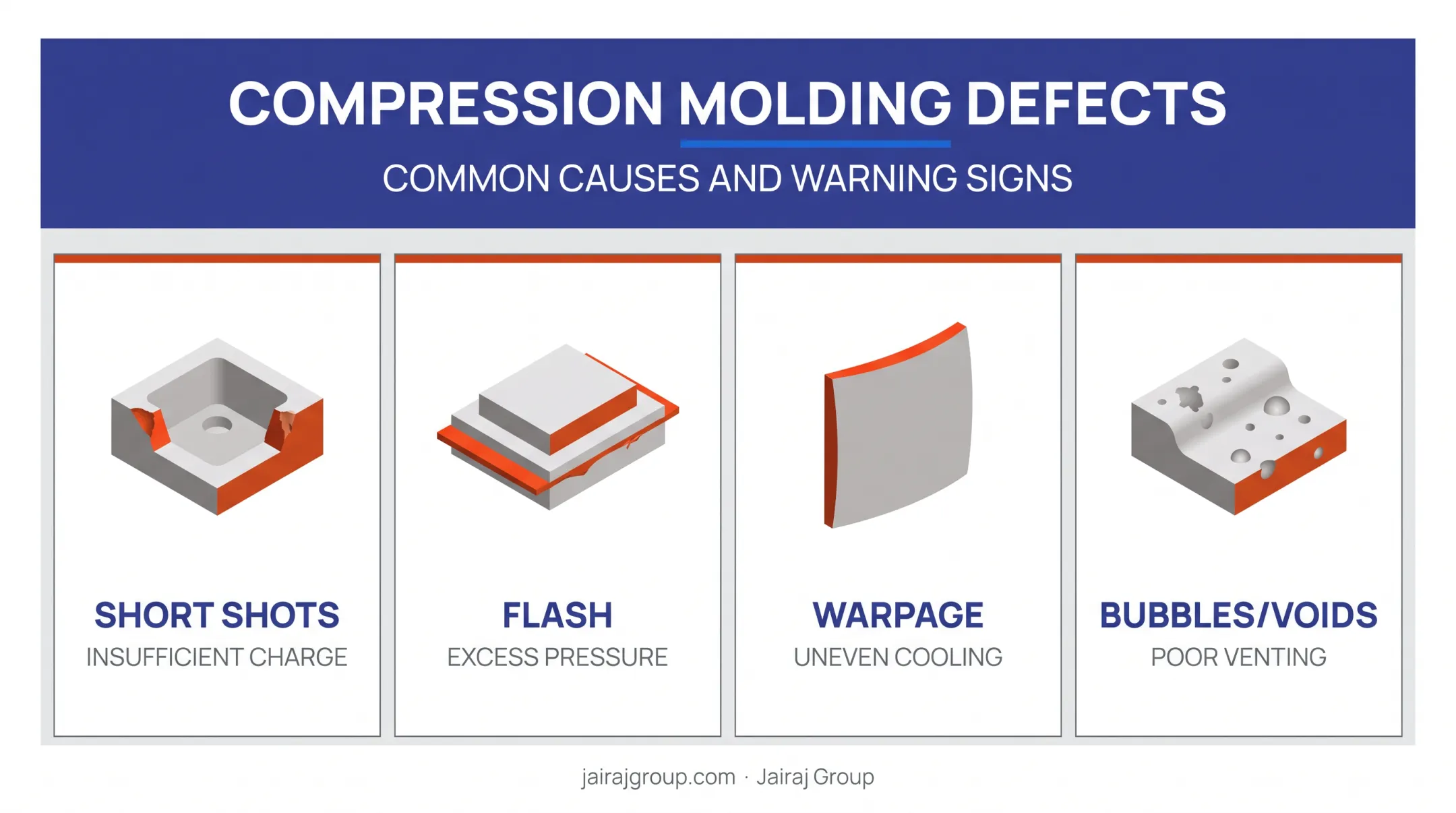

This matters because inconsistent parameters drive costly scrap rates, especially in precision-driven sectors like automotive and medical devices. Common defects and their causes:
| Defect | Typical Cause |
|---|---|
| Short shots | Insufficient charge, low pressure, poor venting |
| Flash | Excess material, high pressure, poor mold sealing |
| Warpage | Uneven cooling, residual stress |
| Bubbles/voids | Poor venting, moisture, excessive compression speed |
Output and Result
Once cured or cooled, the part is demolded and excess flash is trimmed by hand. The finished piece then moves into downstream assembly, often as a housing, gasket, or structural panel.
Output consistency shows up in dimensional accuracy, less rework, and longer service life. Jairaj Group draws on four decades of polymer engineering across its Indian facilities to build custom molds in-house and validate parts through dimensional checks, load testing, and durability assessment before shipment to OEM customers.

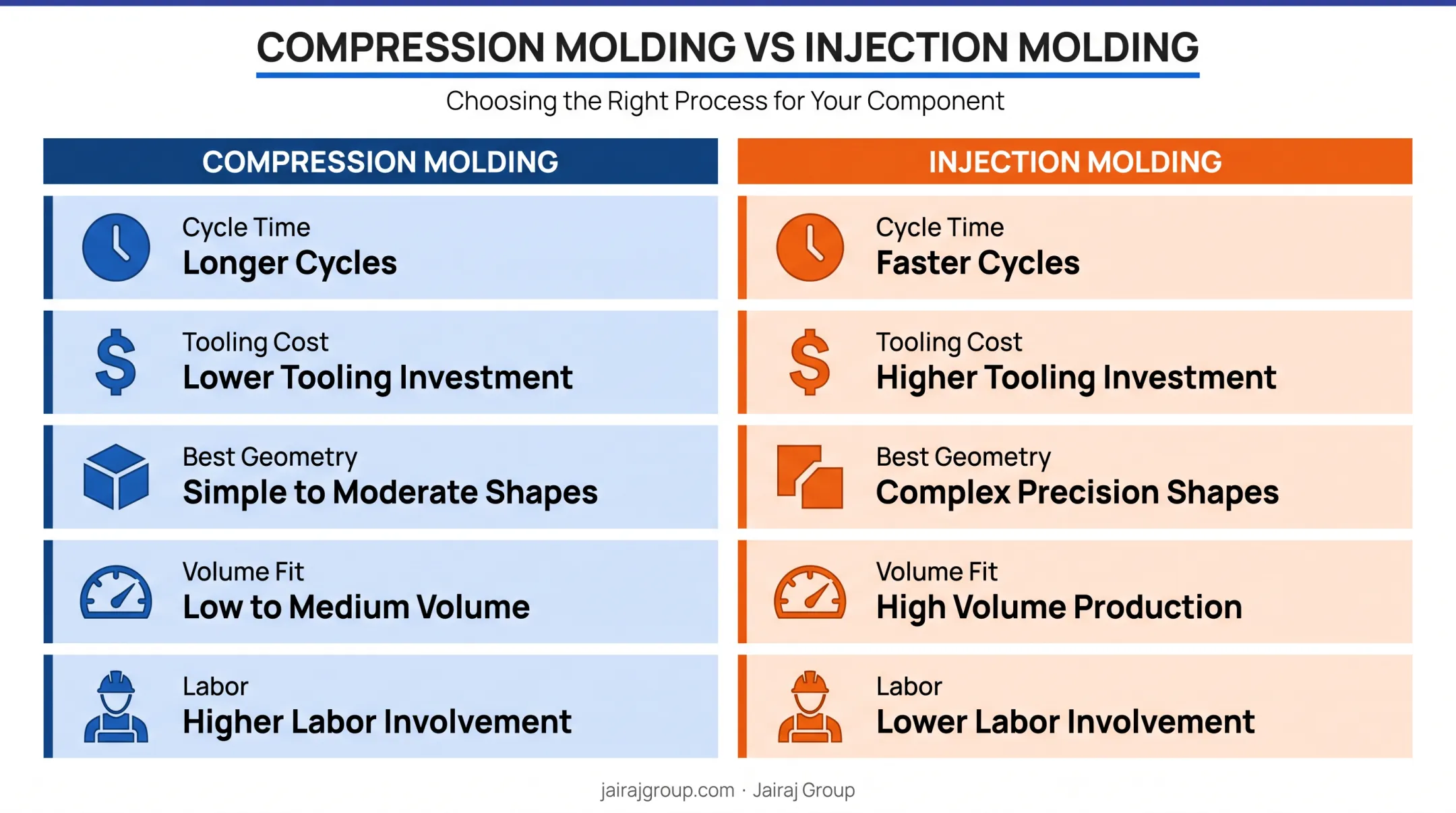

Compression Molding vs. Injection Molding
The core operational difference comes down to timing: compression molding closes a mold around a pre-placed charge, while injection molding injects material into a cavity that's already closed.
| Factor | Compression Molding | Injection Molding |
|---|---|---|
| Cycle time | Minutes | Seconds |
| Tooling cost | Lower, especially at low volume | Higher |
| Best geometry | Large, simpler shapes | Complex, high-precision parts |
| Volume fit | Low-to-medium | High volume |
| Labor | Higher, due to manual flash removal | Lower |
According to Xometry's 2022 comparison, that cycle-time gap is typical on the shop floor. Choose compression molding when lower tooling cost and large, simpler parts matter more than speed; choose injection molding for high volume and complex, high-precision geometry.
Materials Used in Compression Molding
Compression molding runs with both thermosets and thermoplastics, and each class brings different trade-offs:
- Thermosets (epoxy, phenolic, melamine, SMC, BMC): cure irreversibly under heat, ideal for high-strength, heat-resistant structural parts
- Thermoplastics (HDPE, PEEK, PPS): can be reheated and reshaped, offering more flexibility in reprocessing
- Silicone and urethane: valued for gaskets, seals, and medical components needing flexibility and precision
Phenolic compression-molded parts are common in electrical applications. They show up in circuit breakers, terminal blocks, and connectors where dielectric strength and chemical resistance matter.
Jairaj Group primarily processes engineered thermoplastics such as PEEK, polycarbonate, TPU, and PA66-GF. Those materials fit programs that need reprocessing flexibility and chemical resistance more than irreversible thermoset curing.

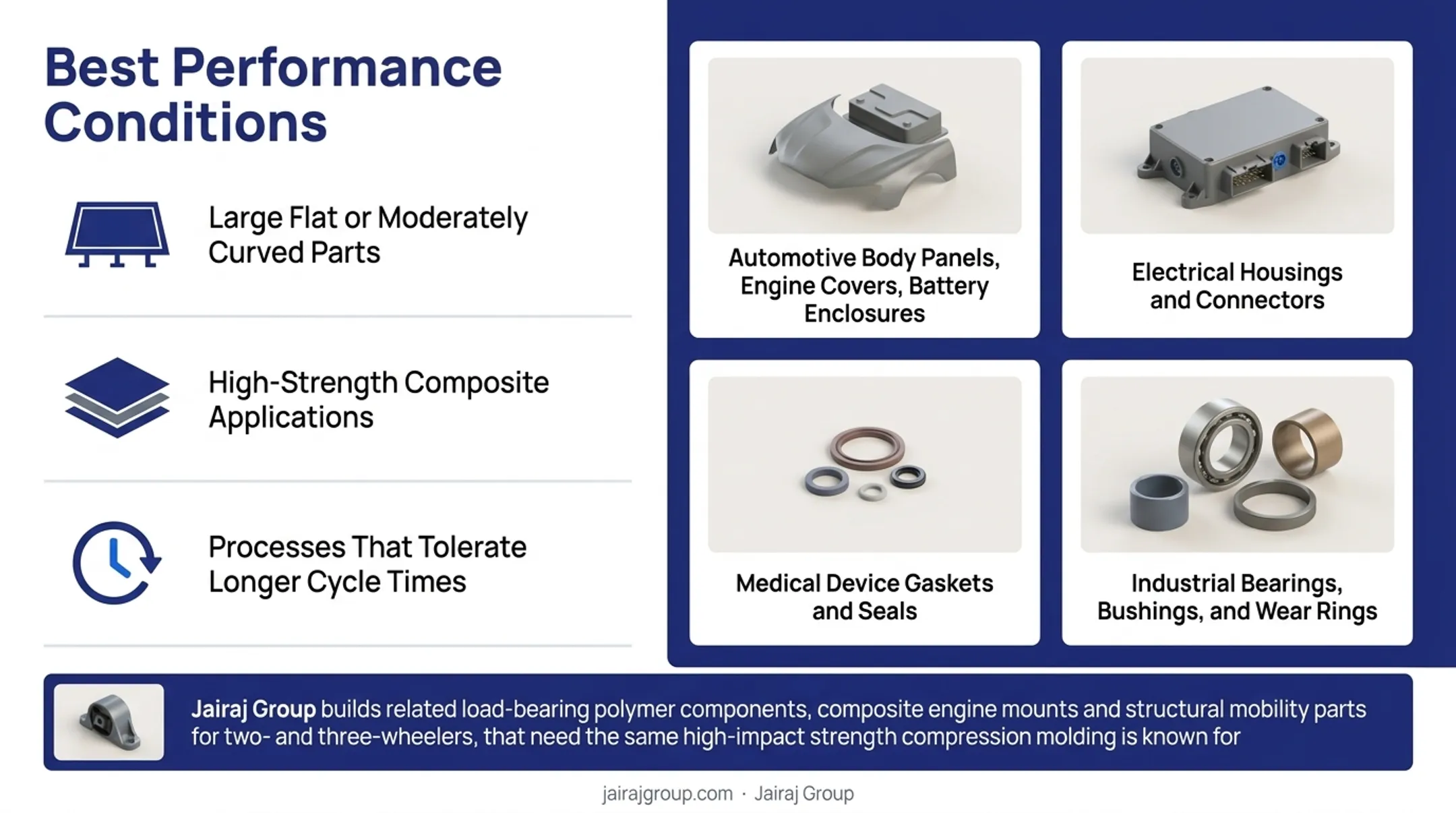

Where Compression Molding Is Used
Compression molding suits bulk part production, structural components, and parts that move into assembly after molding. It performs best on:
- Large flat or moderately curved parts
- High-strength composite applications
- Processes that tolerate longer cycle times
Industry examples include:
- Automotive body panels, engine covers, and battery enclosures
- Electrical housings and connectors
- Medical device gaskets and seals
- Industrial bearings, bushings, and wear rings
Automotive OEMs and heavy equipment makers depend on tight process control to hit strength and dimensional targets on these parts.
Jairaj Group builds related load-bearing polymer components—composite engine mounts and structural mobility parts for two- and three-wheelers—that need the same high-impact strength compression molding is known for.
Conclusion
Compression molding's process logic—charge placement, controlled heat and pressure, then curing or cooling—determines final part strength and consistency. Get any stage wrong and you're looking at flash, warpage, or scrap.
Understanding that logic helps you choose materials, set process parameters, and select a manufacturing partner that can meet your part geometry and volume requirements.
Frequently Asked Questions
What is compression molding in plastics?
Compression molding shapes preheated plastic material into parts using two heated mold halves and applied pressure. The material fills the cavity under pressure, then cures or cools into its final form.
What are the steps involved in compression molding?
The sequence covers mold preparation, charge measurement and placement, compression under heat and pressure, curing or cooling, and trimming away excess flash.
Is compression molding more expensive than injection molding?
Tooling costs run lower, especially at lower production volumes. Labor costs run higher, though, because of slower cycle times and manual flash removal.
What are some examples of compression molding products?
Common examples include automotive body panels and battery enclosures, electrical connectors and housings, kitchenware, and medical device gaskets and seals.
How long does the compression molding process take?
Cycle times vary widely based on part thickness and material. Documented examples range from 10-12 seconds for thin composite parts up to several minutes for thicker thermoset components.
Is compression molding suitable for complex part geometries?
It works best for simpler, thicker geometries rather than intricate, thin-walled designs. For high-precision or highly detailed parts, injection molding is typically the better fit.
