Precision Blow Mold Tooling for Production

The three main blow molding methods are extrusion blow molding, injection blow molding, and stretch blow molding. Extrusion blow molding forms a hollow tube of molten plastic before inflation. Injection blow molding injects a preform onto a core and then blows it into shape. Stretch blow molding stretches and inflates a preform, commonly for containers requiring strength and clarity.

Common blow molding materials include high-density polyethylene (HDPE), polypropylene (PP), polyethylene terephthalate (PET), low-density polyethylene (LDPE), polyvinyl chloride (PVC), and polycarbonate (PC) for selected applications. Material selection should consider chemical resistance, impact performance, temperature exposure, stiffness, appearance, recyclability, and the component’s intended use. The chosen polymer also influences tooling, processing conditions, cooling, and final part behavior.

Blow mold tooling design is influenced by the part’s shape, volume, neck finish, wall-thickness targets, polymer grade, cooling needs, surface finish, expected production volume, and required tolerances. Engineers also evaluate pinch-off areas, venting, parting-line placement, and how the component will be trimmed, assembled, or tested. Reviewing these factors early helps reduce avoidable development changes and production risk.

Yes. Blow molding is used for hollow automotive components such as fluid reservoirs, ducts, tanks, and functional housings. Tooling must account for the application’s dimensional, leak-resistance, durability, assembly, and material-performance requirements. Jairaj Group’s experience in automotive polymer components, precision tooling, assembly support, and quality-focused manufacturing provides relevant engineering context for these demanding component programs.

Design for manufacturability, or DFM, evaluates a component before tooling is finalized to ensure its geometry suits the selected process and material. It can identify concerns involving sharp transitions, undercuts, wall distribution, venting, cooling, trimming, and assembly interfaces. Addressing these items during development helps create a more practical mould design and supports stable, repeatable production after launch.

Mould development support typically includes reviewing component requirements, assessing material and process suitability, developing a mould concept, and refining design details for manufacturing. Jairaj Group also offers material research, process simulations, rapid prototyping, testing, and validation capabilities that can support informed tooling decisions. The exact scope should be defined around the component’s application, performance requirements, and production objectives.

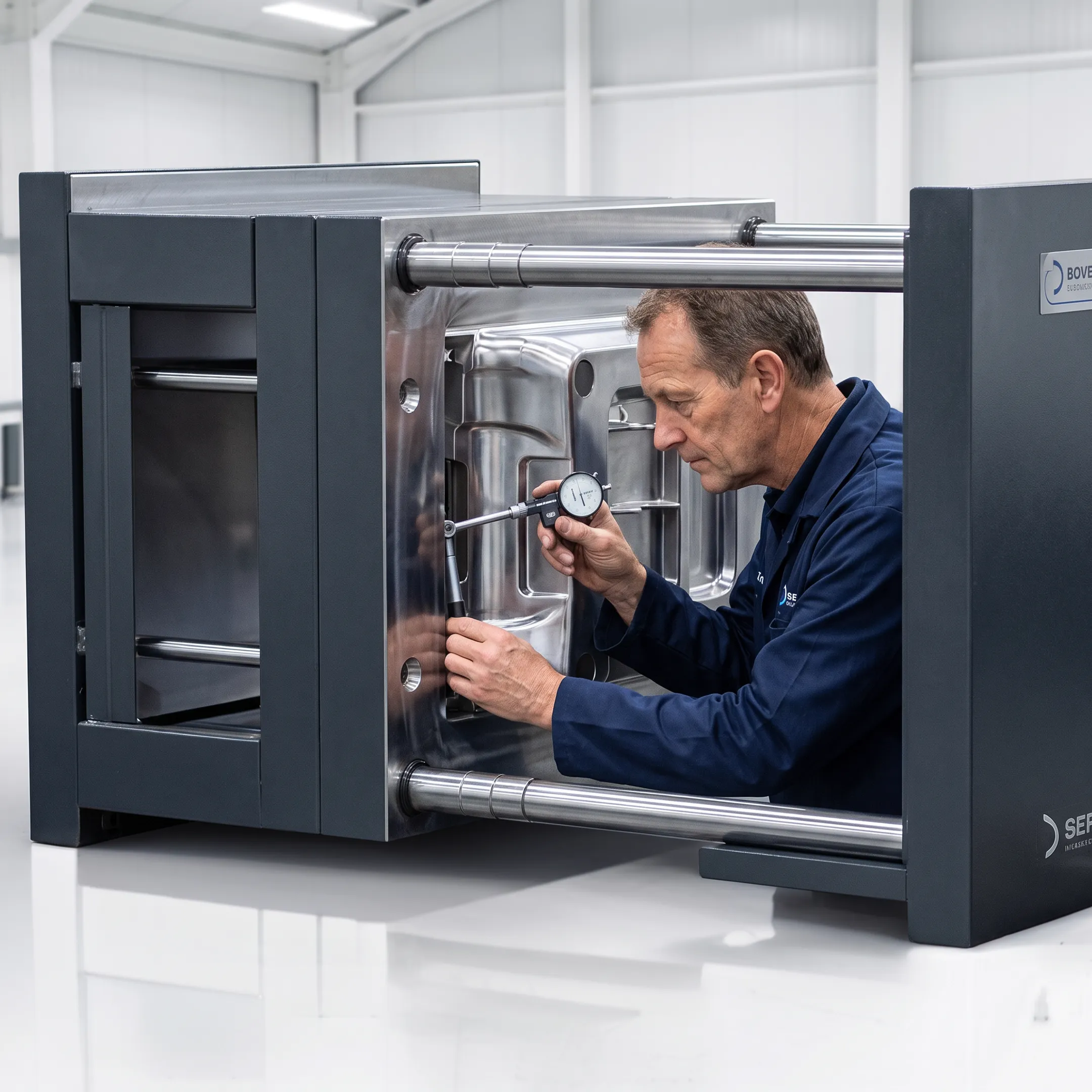

Tool validation should confirm that the mould can produce parts meeting agreed dimensional, fitment, functional, and durability requirements. The process may include trial runs, dimensional checks, visual inspection, wall-thickness review, stress or leak testing where applicable, and assessment of cooling and cycle consistency. Findings from these evaluations guide final refinements before a program moves into regular production.

Begin by defining the component’s application, expected annual volume, target material, drawings or CAD data, key dimensions, functional interfaces, and validation requirements. Sharing any known performance conditions, such as chemical exposure, temperature, pressure, or assembly constraints, enables a more useful engineering review. Jairaj Group can then discuss mould development, manufacturability considerations, testing needs, and an appropriate path toward production readiness.
