Medical device manufacturers face a unique triple bind: parts must be dimensionally perfect, biologically safe for human contact, and produced under strict regulatory oversight. There's no room for error when a component ends up inside a patient's body or a surgeon's hands.
The global medical injection molding market is projected to reach $39.7 billion by 2033, growing at roughly 5.9% annually, according to Grand View Research. That growth reflects rising demand for precision-molded disposables, implants, and diagnostic hardware.
This guide covers the process itself, material selection, applications, regulatory requirements, and what to look for in a manufacturing partner.
Key Takeaways
- High-precision medical injection molding scales complex, biocompatible components at production volume
- Choose resins (PP, PE, PC, PEEK, silicone) based on sterilization, biocompatibility, and mechanical load
- ISO 13485, ISO 10993, and cleanroom controls are mandatory for medical-grade parts—not optional extras
- Partners with in-house tooling and testing shorten development cycles and reduce launch risk
What Is Medical Injection Molding?
Medical injection molding melts medical-grade thermoplastics and injects them into precision-engineered molds, often under controlled cleanroom conditions to prevent contamination.

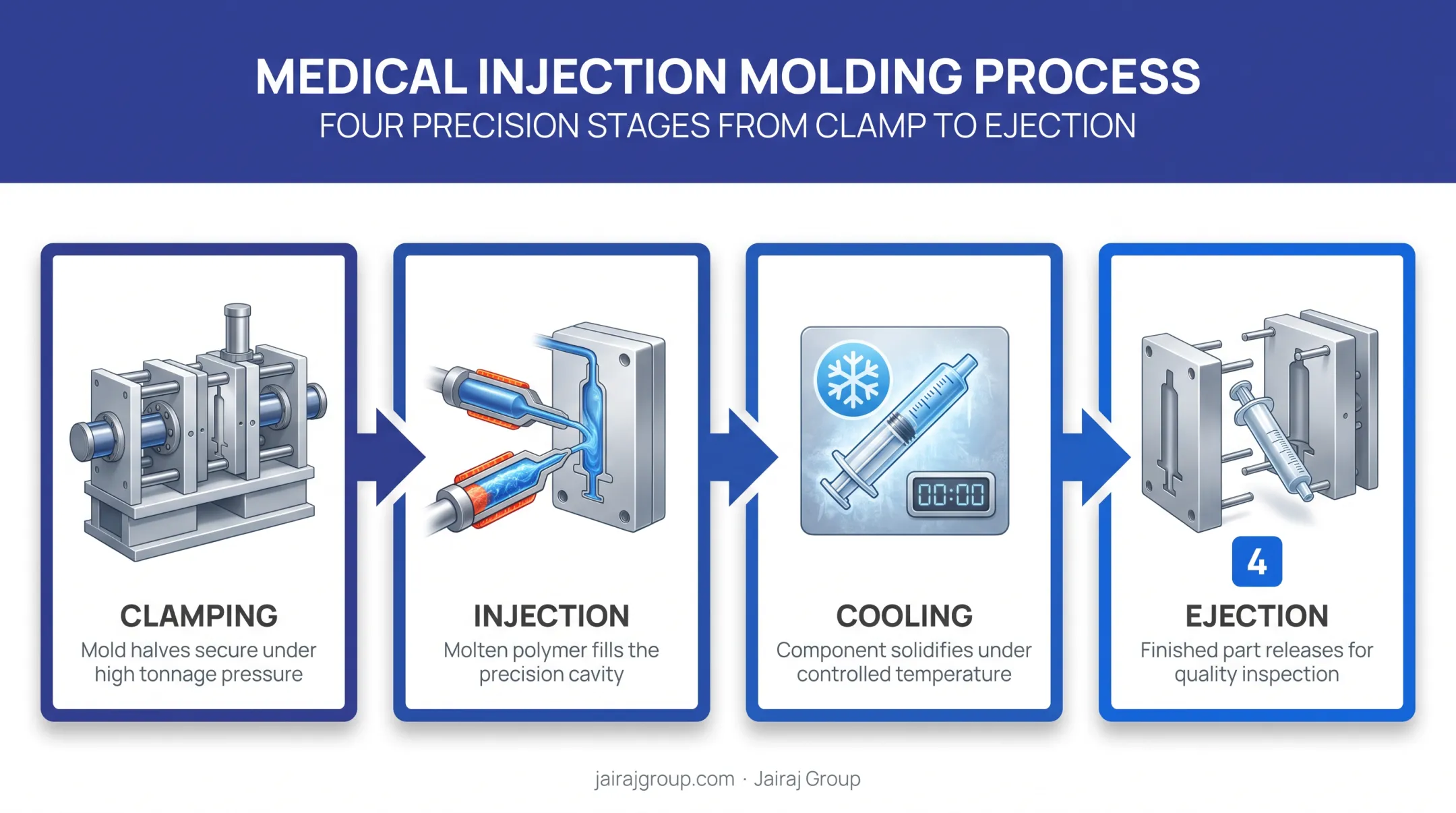

The process runs through four core stages:
- Clamping — the mold halves close under high pressure
- Injection — molten plastic fills the cavity
- Cooling — the material solidifies into its final shape
- Ejection — the finished part releases from the mold
For products with strict contamination limits, manufacturing happens inside classified cleanrooms. ISO 14644-1 classifies these environments by airborne particle concentration.
Medical injection molding often runs in an ISO Class 8 environment, per Spectrum Plastics. That rating covers air cleanliness only—not device sterility on its own.
The same process scales from a handful of prototype units to production runs in the millions, which is why it is so widely used in medical manufacturing.
Common Techniques Used
Not every medical part comes from a single, basic molding process. Manufacturers pull from several specialized techniques depending on the part's function:
- Insert molding — plastic forms around a pre-placed component, common for needle hubs
- Overmolding — a second material molds over a base part, used for surgical handle grips
- Thin-wall molding — produces ultra-precise, lightweight parts for diagnostics
- Liquid silicone molding (LSR) — creates flexible, biocompatible parts like tubing and seals, often curing in around 30 seconds under pressure

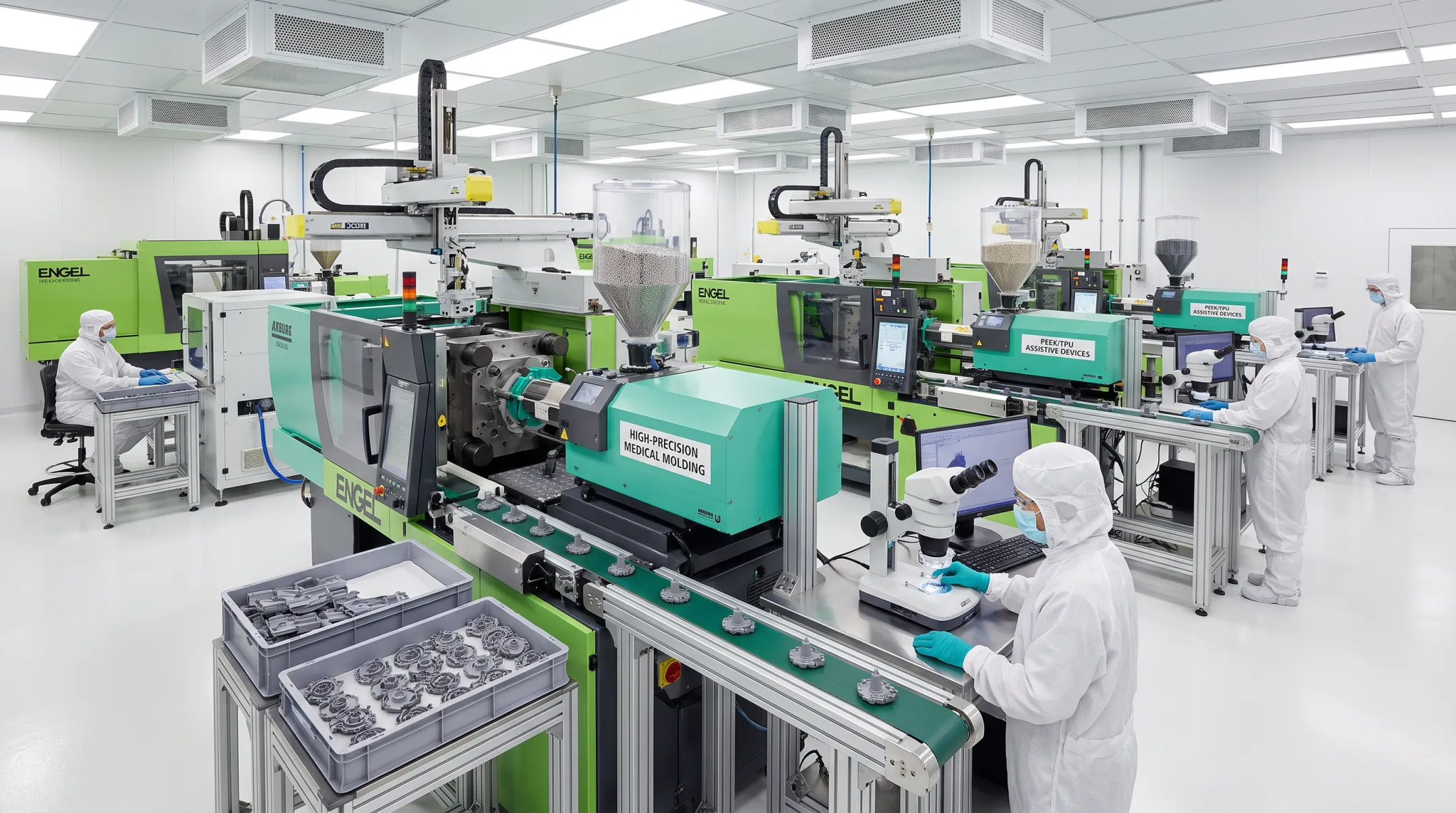

Jairaj Group's lines support insert molding, overmolding, and two-shot molding for wearable and assistive medical components, working with engineering polymers such as PEEK, polycarbonate, and TPU.
Why Injection Molding Is Essential for Medical Devices
Medical components often carry tolerances measured in microns. A syringe plunger that's slightly out of spec can leak or bind. Injection molding delivers that repeatability shot after shot, something manual machining struggles to match at scale.
Cost efficiency comes from tooling amortization. Once a mold is built, per-part costs drop sharply as volume rises. Those same tooling-to-volume economics are well established across high-volume plastics manufacturing.
Beyond precision and cost, medical parts need to survive:
- Repeated autoclave or EtO sterilization cycles
- Chemical exposure from cleaning agents and bodily fluids
- Mechanical stress from insertion, handling, or long-term wear
Injection molding supports medical-grade resins built for those conditions. It also scales naturally: a design can move from a low-volume prototype run straight into full production without changing the underlying process, only the tooling and cavitation.
Common Applications in Medical Devices
Injection-molded plastics show up nearly everywhere in modern healthcare:
- Implantable devices — joint components, dental implants, often molded from PEEK
- Surgical instruments — scalpel handles, forceps, retractors
- Disposables — syringes, test tubes, petri dishes, IV connectors
- Diagnostic equipment — cartridge housings, sample-prep consumables
- Device housings and packaging — sterile trays, enclosures, protective cases
Assistive and wearable devices use the same precision molding approach. Hearing-aid housings, prosthetic and orthotic parts, and mobility-device structures from Jairaj Group use materials rated for -40°C to 120°C (-40°F to 248°F), with PEEK-based hearing-aid components rated up to 260°C (500°F).
Choosing the Right Materials
Thermoplastics dominate medical molding because they remelt cleanly and process consistently, unlike thermosets, which cure permanently and can't be remelted, reworked, or reprocessed like thermoplastic scrap.
PP, PE, PC, and PEEK
Polypropylene (PP) resists cracking, radiation, and repeated stress, making it a go-to for syringes and connectors. Certain PP-H grades handle up to 800 steam-sterilization cycles, though this is grade-specific.
Polyethylene (PE) offers tissue compatibility and chemical resistance, and is common in joint prostheses and tubing.
Polycarbonate (PC) provides clarity and impact resistance for masks, housings, and oxygenator components. Some medical-grade PC complies with ISO 10993-1 and USP Class VI, though grades aren't interchangeable.
PEEK stands apart for implant-grade applications: it tolerates repeated steam sterilization without losing mechanical strength—a strong fit for load-bearing implants.
Silicone and TPEs
Silicone and thermoplastic elastomers handle flexible, skin-contact applications such as catheters, tubing, and wearable enclosures because they're chemically inert and mechanically forgiving. Jairaj Group molds silicone and TPE for overmolded wearable-device enclosures and soft-touch ergonomic surfaces.
Selection ultimately comes down to three questions:
- Which sterilization method will the device undergo?
- Does the resin meet ISO 10993 biocompatibility requirements for its specific contact type?
- Can it survive the mechanical and chemical demands of its use case?

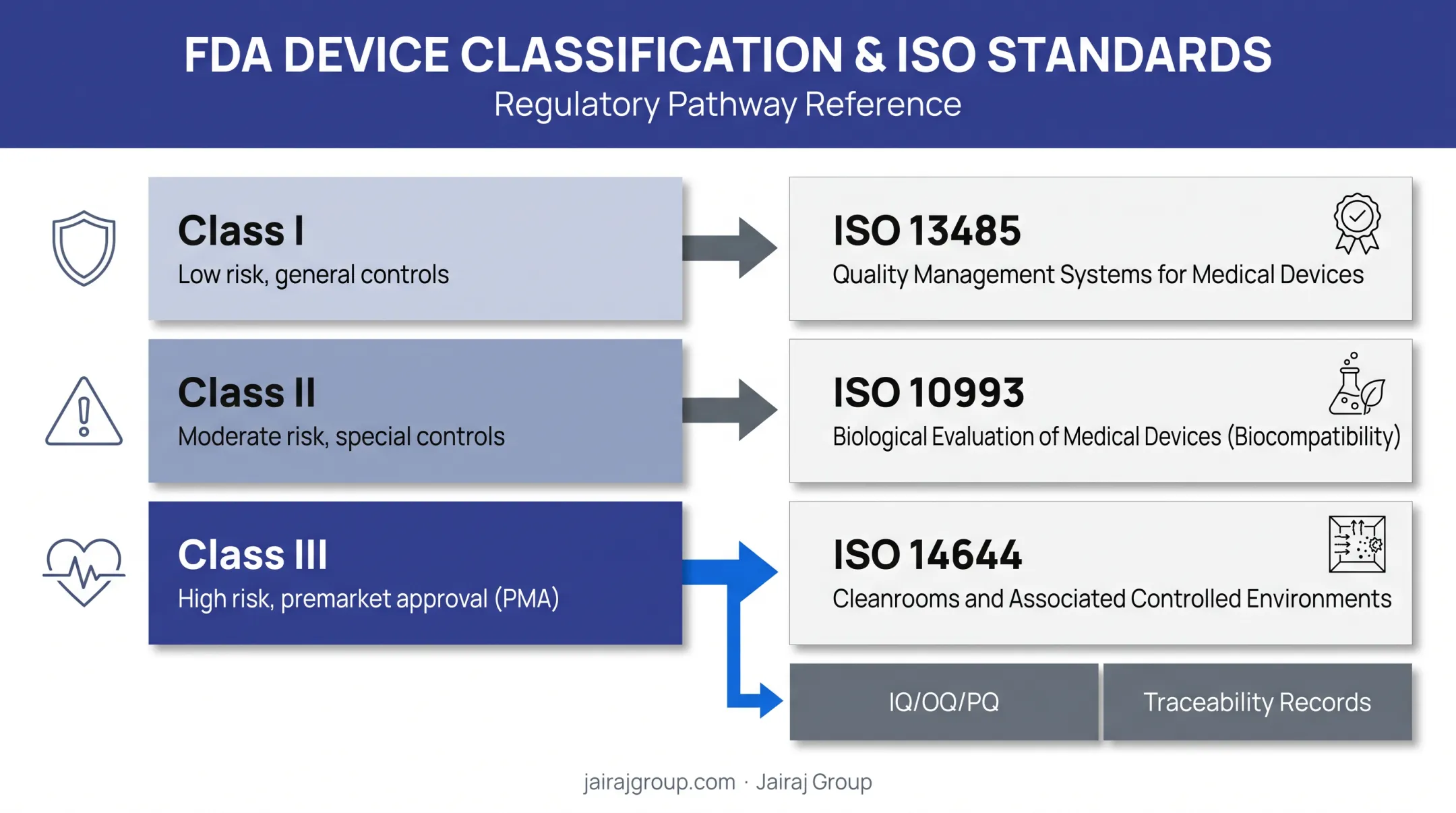

Regulatory Standards and Quality Requirements
The FDA classifies medical devices into three risk-based classes:
| Class | Risk Level | Typical Requirement |
|---|---|---|
| Class I | Lowest | Often exempt from premarket review |
| Class II | Moderate | Premarket Notification (510(k)) |
| Class III | Highest | Premarket Approval (PMA) |
Manufacturing oversight increases with each class. Beyond classification, three ISO standards anchor medical molding quality:
- ISO 13485: quality management systems for medical device manufacturing
- ISO 10993: biological evaluation and biocompatibility of device materials
- ISO 14644: cleanroom air cleanliness classification
Documentation and traceability aren't optional here. Every batch needs material certifications, process validation records (IQ/OQ/PQ), and full lot traceability connecting finished parts back to raw material and process conditions.
Partnering with an Experienced Manufacturer
Choosing a molding partner for medical components isn't like sourcing a generic plastic bracket. The stakes, and the paperwork, are higher.
Look for these capabilities:
- In-house tool room for custom mold development and rapid iteration
- PLC-controlled molding lines for consistent, repeatable shots
- Comprehensive testing: dimensional verification, material properties, chemical resistance
- Full documentation, batch traceability, and FDA-aligned quality records
Jairaj Group brings four decades of plastic polymer engineering experience, ISO 9001:2015 certification, and a six-facility manufacturing network across India. The company produces plastic components for wearable medical devices, along with prosthetic, orthotic, and health-monitoring device parts.
Jairaj's capabilities include:
- Multi-cavity, insert, and two-shot molding
- Engineering polymers: PEEK, polycarbonate, PA66-GF, TPU
- PLC-controlled injection molding lines
- Automated handling, in-line inspection, and full production traceability
For OEMs evaluating partners, documented quality systems and hands-on tooling expertise reduce guesswork and risk when scaling a new medical component from prototype to production.
Frequently Asked Questions
What is medical injection molding?
Medical injection molding melts medical-grade thermoplastics and injects them into precision molds, often under cleanroom conditions, to produce components such as syringes, catheters, and implants.
What is the purpose of injection molding?
Injection molding delivers efficient, repeatable production of complex plastic parts at scale, keeping per-unit costs low once tooling is in place.
What are injection molded medical devices?
Common examples include syringes, catheter components, surgical instrument handles, diagnostic cartridges, and implantable parts like joint or dental components.
What are some common parts made by injection molding?
In medical manufacturing, common molded parts include device housings, fluid connectors, disposable consumables, diagnostic cartridges, and structural components for instruments and equipment.
What is the best plastic for medical devices?
Material choice depends on the application. PP and PE suit disposables and connectors, PC offers clarity for housings, PEEK handles implants, and medical-grade silicone (LSR) works for flexible, skin-contact parts.
How long does an injection mold last?
Aluminum molds typically last 2,000-10,000 parts, while hardened steel tools can exceed 100,000 parts, depending on resin abrasiveness and part geometry.
