Jacket selection has become a bigger deal across automotive, industrial, and electronics manufacturing. Regulatory compliance, equipment lifespan, and safety all hinge on choosing a material suited to the actual operating environment, not just the cheapest or most familiar option.
This guide breaks down the major cable jacket materials, what they're actually good for, and how to pick the right one for your application.
TL;DR
- Cable jackets protect insulation and conductors from abrasion, chemicals, heat, and moisture
- Common materials: PVC, PE, PUR, CPE, rubber compounds (Neoprene/EPR), and fluoropolymers
- Each material trades off cost, flexibility, temperature range, and chemical resistance differently
- The right jacket depends on environment, mechanical stress, and compliance requirements, not popularity
What Is a Cable Jacket and Why It Matters
A cable jacket is the outer protective layer wrapped around a cable's insulated conductors. It's easy to confuse with insulation, but they do different jobs.
Insulation electrically separates conductors from each other and from the outside world. The jacket protects everything underneath from physical and environmental damage. Belden puts it plainly: cable jackets "protect what's inside your cable: the insulation and conductor core" (Belden, 2021).
UL's Wire and Cable Guide reinforces this distinction with its marking system. A single "O" rating means the jacket alone is oil resistant; a double "O" means both jacket and conductor insulation are rated for oil exposure. Two separate properties, two separate materials, two separate tests (UL Wire and Cable Guide).
Get the jacket wrong and you'll see:
- Cracking or embrittlement in cold or UV-heavy environments
- Chemical degradation from oils, solvents, or cleaning agents
- Increased fire risk from poor flame-retardant properties
- Premature cable failure, often well before the insulation itself would fail

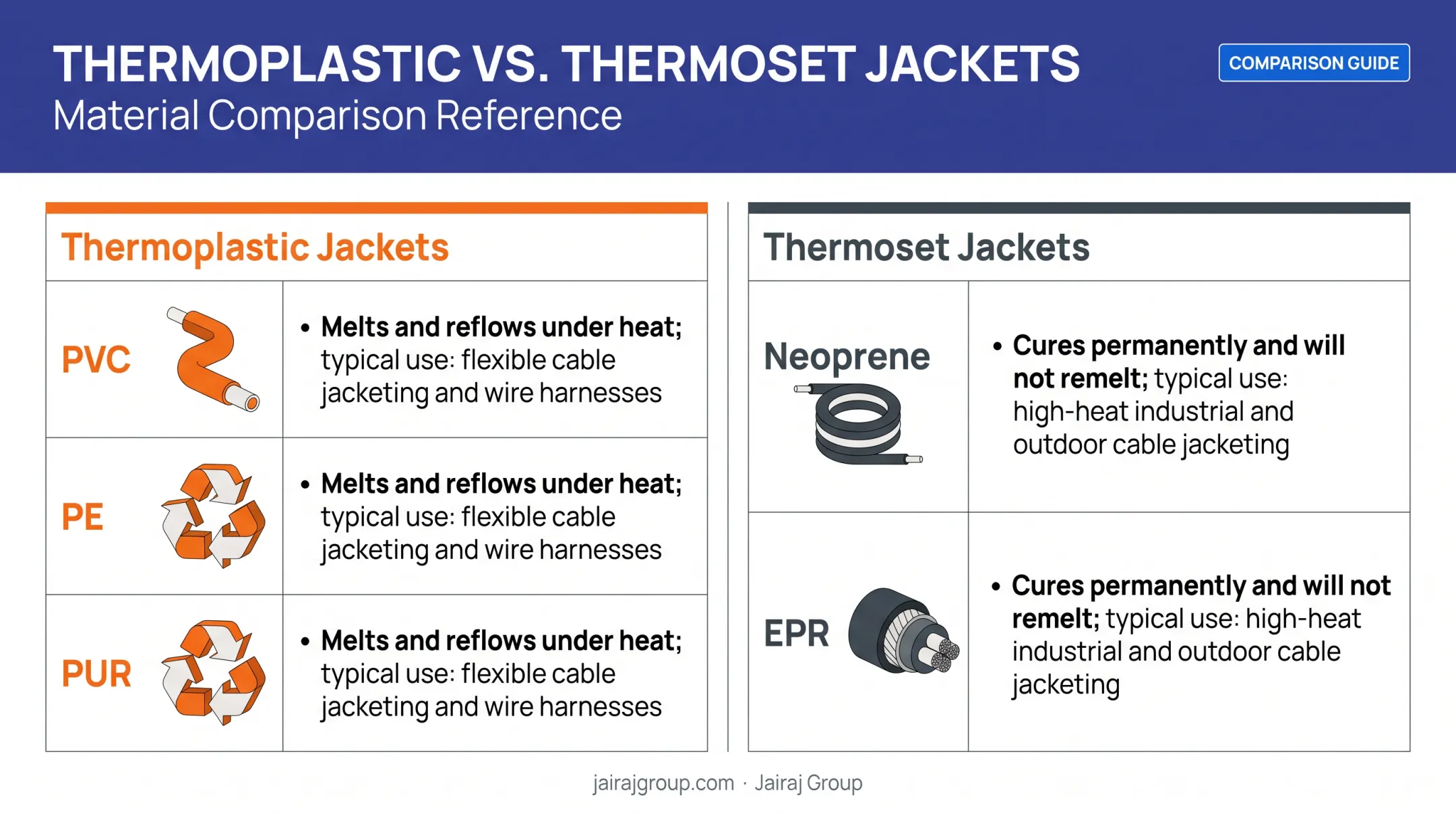

Jacket materials fall into two broad families: thermoplastic (PVC, PE, PUR) and thermoset (rubber compounds like Neoprene and EPR). Neither category is universally better. It depends entirely on what the cable needs to survive.
Types of Cable Jacket Materials
There's no single "best" jacket material. The right choice depends on temperature range, chemical exposure, flexibility needs, and budget. Here's how the major options stack up.
PVC (Polyvinyl Chloride)
PVC is the workhorse of cable jacketing: a flexible, cost-effective thermoplastic used across countless indoor applications. It works by forming a chemically stable outer barrier that resists moisture and general wear without adding much cost or weight.
Typical PVC jacket temperature ranges run from around -30°C to +105°C, depending on formulation (Alpha Wire).
Flame retardancy isn't automatic. Alpha Wire's training materials note that "most PVC compounds can be made flame retardant and UV resistant," so performance depends on the specific formulation, not the base polymer (Alpha Wire Training Manual).
Is PVC waterproof and outdoor-rated? Not exactly. igus notes PVC resists permanent moisture and salt water exposure well, and oil-resistant formulations exist for washdown environments (igus). But UV and cold-weather performance are weaker spots.
Best suited for:
- Indoor wiring and general-purpose electronics
- Telecom applications
- Washdown environments with cleaning chemical exposure
Limitations:
- Becomes brittle in cold temperatures
- Releases toxic gases when it burns
Polyethylene (PE)
PE is a tougher, more rigid thermoplastic built for outdoor durability. Where PVC struggles with UV and moisture over time, PE tends to hold up.

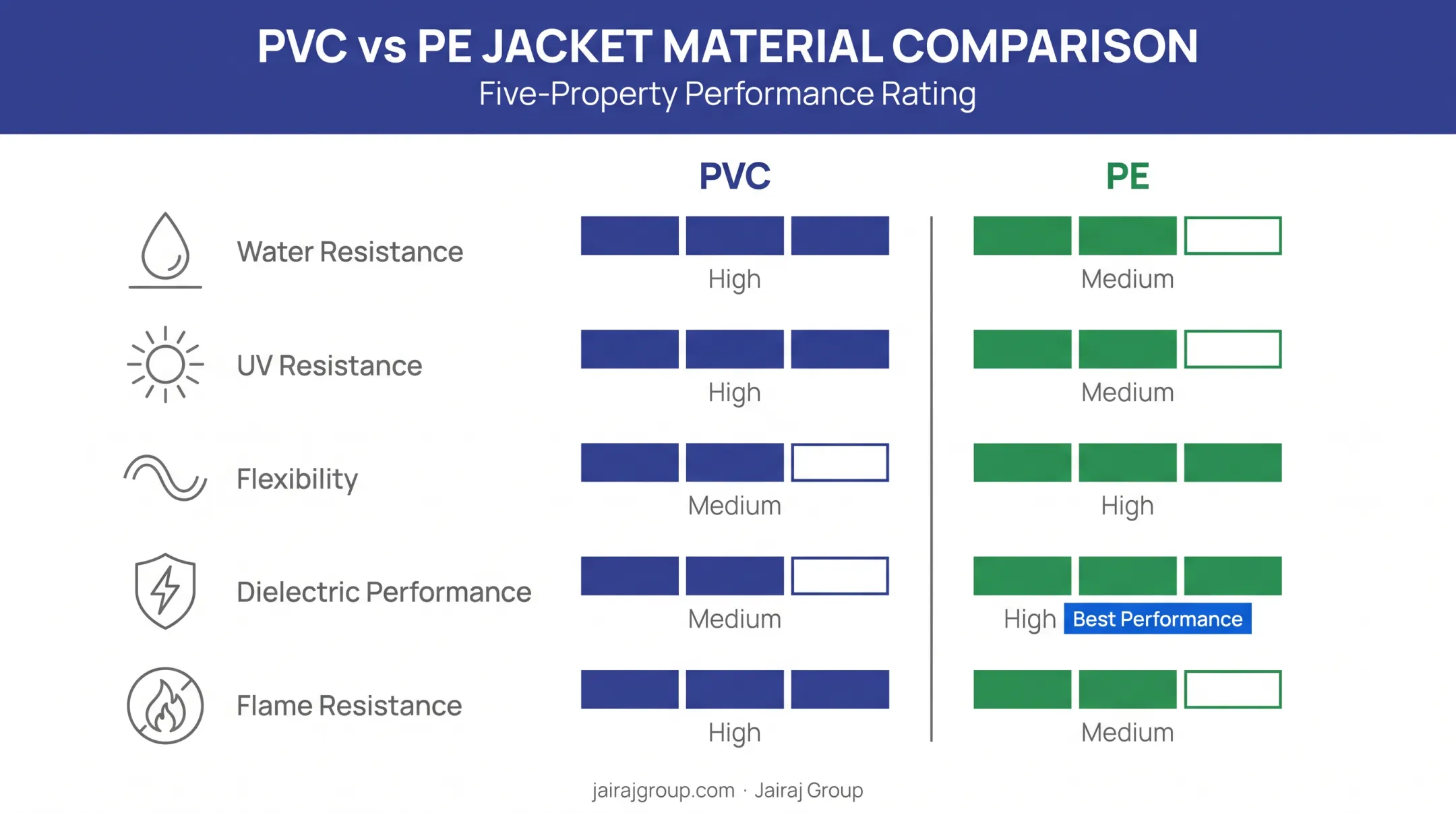

Belden's direct comparison is straightforward: PE jackets have better water resistance than PVC (Belden, 2020). PE also carries a relatively low dielectric constant, which matters for signal integrity in high-frequency applications.
The tradeoff? PE is stiffer than PVC and generally offers less inherent flame resistance, which is why you'll rarely see it in indoor, code-restricted spaces without additional treatment.
Best suited for:
- Direct burial cabling
- Outdoor telecom infrastructure
- High-frequency signal transmission where dielectric performance matters
Polyurethane (PUR)
PUR is the material you reach for when a cable needs to survive constant motion. It's a highly flexible thermoplastic with strong "memory," meaning it returns to shape after repeated bending instead of kinking or cracking.

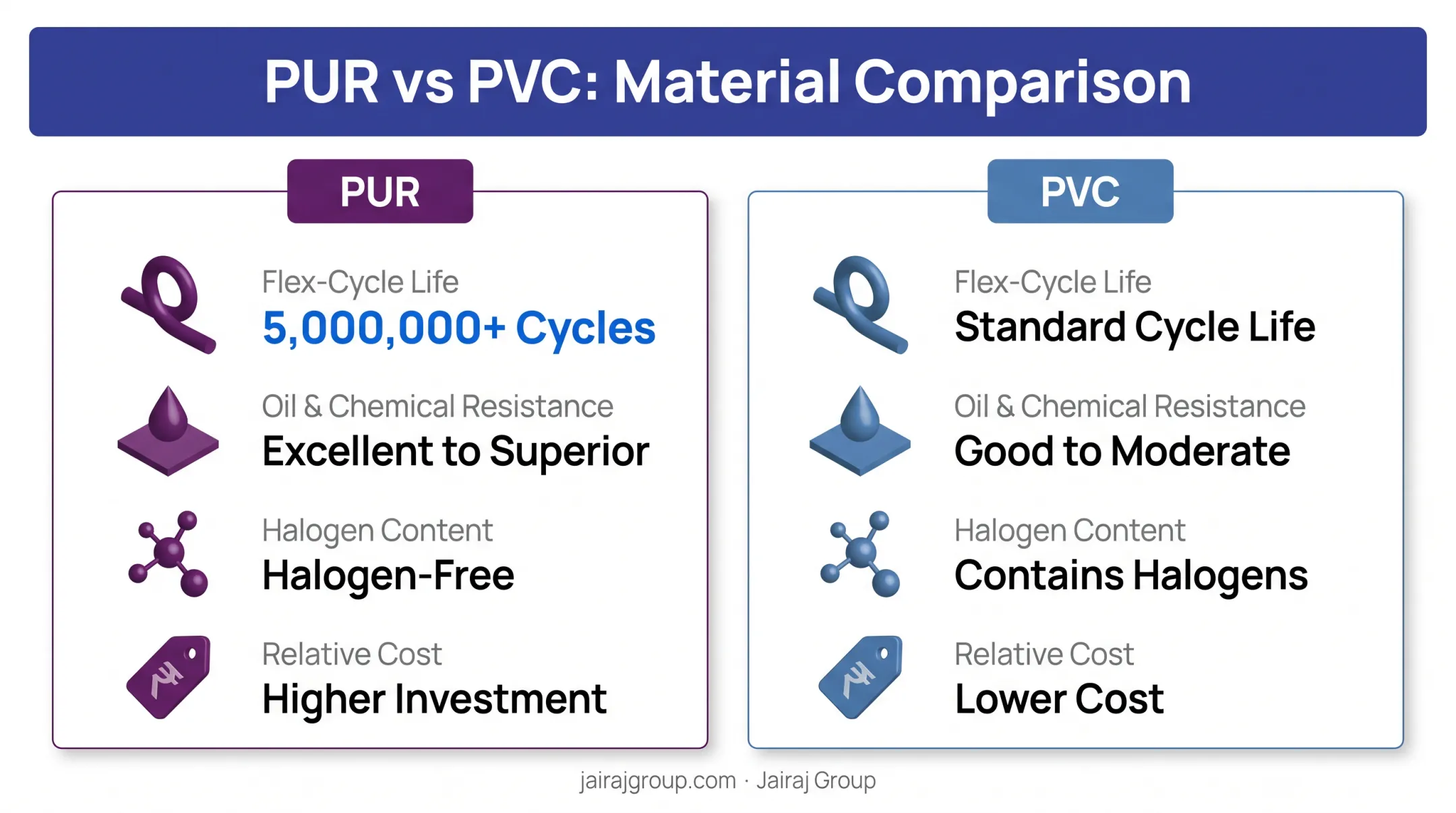

PUR vs. PVC comes down to a few clear differences:
- Flexibility: Far higher flex-cycle life—Belden's HF4G4P is rated for more than 5 million cycles (Belden HF4G4P)
- Oil and chemicals: Stronger abrasion, oil, and chemical resistance than PVC in harsh environments (igus)
- Halogen content: Often halogen-free and self-extinguishing, useful where smoke and toxicity limits are tight
- Flame retardancy: Construction-specific, not universal—e.g., Belden's PUR build meets IEC 60332-1-2 for that design
Best suited for:
- Robotics and drag chains
- Automotive assembly lines
- Machine tool environments with constant flexing
Limitation: Higher cost than PVC or PE, which can add up quickly across large cable runs.
CPE (Chlorinated Polyethylene) and Rubber-Based Jackets
CPE vs. PVC: CPE steps up chemical and UV resistance versus standard PVC. Service Wire notes better chemical, fire, and abrasion resistance than PVC (Service Wire), and Belden ranks CPE's water resistance above even PE's.
CPE is available in thermoplastic and thermoset variants, so engineers can match the polymer system to the application.
Southwire's Royal SOOW cord, for example, uses a CPE jacket rated -40°C to +90°C with water, oil, and weather resistance, plus UL 62 and CSA flame ratings (Southwire).
Neoprene and EPR are heavy-duty thermoset rubbers built for extremes.
Southwire's mining-grade neoprene cord is MSHA-approved, rated to 90°C, and built for continuous submersion in wet underground mines. A marine-grade neoprene control cable from ICC rates to 110°C with resistance to oils, petrochemicals, and sunlight (ICC Cable).
Best suited for:
- Chemical plants and repeated washdown areas
- Mining and marine environments
- Heavy industrial runs with wide temperature swings
Fluoropolymers (FEP, PTFE) and Cross-Linked Polyolefins (XLPE/XLPO)
When temperature or chemical exposure gets extreme, fluoropolymers take over.

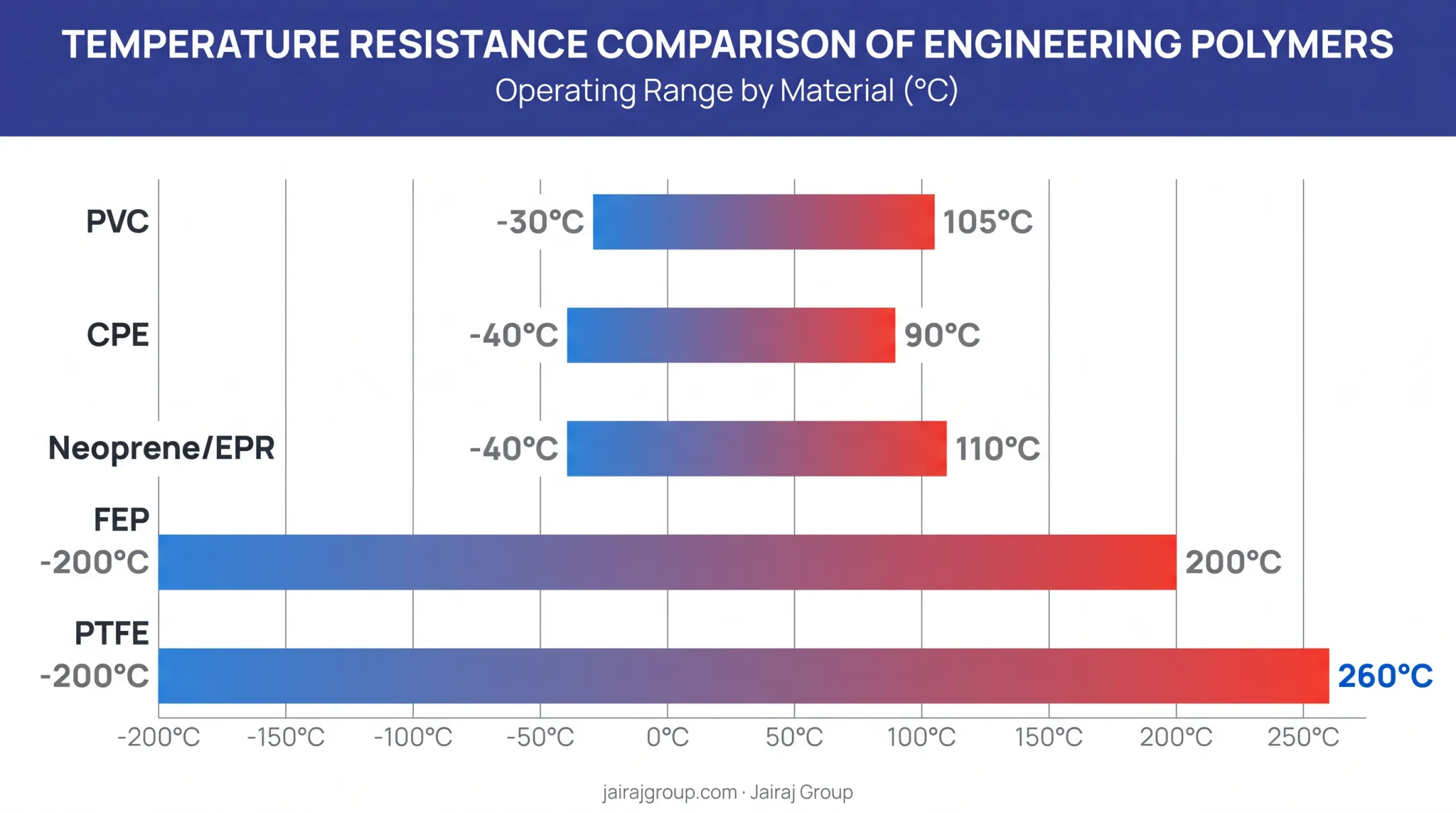

FEP vs. PVC isn't a close comparison on heat or chemistry. TE Wire's FEP-jacketed instrumentation cable operates continuously from -200°C to +200°C (TE Wire), and LAPP's PTFE sheath reaches 260°C in fixed installations (LAPP).
PVC can't match those temperature extremes or chemical inertness. It still wins on cost and general-purpose flexibility.
XLPE/XLPO are cross-linked, often non-halogenated materials used in low-smoke, zero-halogen (LSZH) cable builds.
XLPE is not automatically LSZH by polymer family alone. Belden lists XLPE/PVC and XLPE/TP-LSZH as distinct constructions (Belden). LSZH performance depends on the full construction meeting standards such as UL 1685 or IEC 61034.
Best suited for:
- Aerospace and military harnesses
- High-temperature industrial processing
- Public and building spaces with strict smoke limits
How to Choose the Right Cable Jacket Material
The right jacket material is the one that matches the environment and stress the cable will actually face.
Weigh these factors:
- Operating temperature range — cold-weather brittleness vs. high-heat degradation
- Chemical and oil exposure — washdown chemicals, cutting fluids, petrochemicals
- UV and weather exposure — outdoor vs. protected indoor runs
- Flexibility and bend requirements — static installation vs. constant flexing (drag chains, robotics)
- Flame and smoke regulations — plenum spaces, transit systems, LSZH requirements
- Budget and lifecycle cost — upfront price vs. replacement frequency
- Indoor vs. outdoor/direct burial use — moisture and soil chemical exposure
So what's the "best" overall jacket material? There isn't one. A fluoropolymer jacket rated to 260°C is overkill for indoor office wiring, just as PVC would fail fast in a direct-burial mining application. Match the jacket to the harshest condition in the run, not the average one.
For OEMs building full cable and harness assemblies, jacket selection is only part of the picture. Connector housings, grommets, and protective boots must hold up in the same environment as the cable itself.
Jairaj Group works with automotive and industrial OEMs on custom polymer components for those assemblies, including TPE cable grommets for routing wires through metal panels and flexible jacketing in PA66, TPE, and HDPE for engine-bay and outdoor use. When the jacket is one piece of a harsher-duty harness, that material match across parts is what keeps the full assembly reliable.
Common Mistakes to Avoid When Selecting a Cable Jacket
Even experienced engineers fall into a few predictable traps:
- Over-specifying for the environment. Choosing a fluoropolymer jacket rated for 260°C when the application never sees more than 60°C wastes budget with no real benefit.
- Ignoring known material weaknesses. PVC's cold-temperature brittleness and PUR's inconsistent flame performance are well documented. Skipping this research leads to field failures.
- Underestimating lifecycle cost. A cheaper jacket that fails in 18 months, causing downtime and replacement labor, often costs more than a pricier material that lasts the full equipment lifespan.
Conclusion
Cable jackets and insulation serve different purposes, and understanding that distinction is the first step toward smarter material selection. PVC, PE, PUR, CPE, rubber compounds, and fluoropolymers each solve different problems, from cost-sensitive indoor wiring to extreme-temperature aerospace applications.
Match material properties to real-world risk instead of defaulting to the cheapest or most familiar option. That decision is what keeps cable systems working longer in the field.
Frequently Asked Questions
What is a PVC jacket on a cable?
It's a thermoplastic outer layer valued for affordability, general-purpose flexibility, and formulations that can be made flame retardant. It's a common choice for indoor wiring and telecom applications.
Is a PVC cable jacket waterproof?
PVC offers fair-to-good moisture resistance and can be rated for washdown environments, but it isn't universally waterproof. Performance depends on the specific formulation and rating.
Is a PVC jacket outdoor rated?
PVC has moderate UV and weather resistance but tends to become brittle in cold conditions. PE is often the better choice for long-term outdoor exposure.
What are the key differences between FEP and PVC cable jackets?
FEP handles extreme temperatures (up to 200°C / 392°F or higher) and offers superior chemical resistance, while PVC is more affordable and better suited to general-purpose indoor use.
What are the key differences between polyurethane (PUR) and PVC cable jackets?
PUR offers far greater flexibility, abrasion resistance, and oil resistance for constant-motion applications. PVC costs less and works well where flame retardancy and simplicity matter more than flex life.
What is the difference between a cable jacket and insulation?
Insulation provides electrical separation directly around the conductors. The jacket is the outer layer that protects against physical damage, chemicals, moisture, and fire risk.
