Thermoplastic elastomers (TPEs) have become a go-to option for design teams that need flexibility without sacrificing safety or manufacturability. The global medical elastomers market hit $3.8 billion in 2022 and is projected to reach $9.7 billion by 2030, with TPE representing more than 68% of that revenue.
Manufacturers still face a real pain point: balancing sterilization compatibility, biocompatibility, and cost-effective processing without over-engineering the part. This guide breaks down what medical-grade TPE actually is, its benefits and limits, the regulatory standards that matter, and how it stacks up against silicone and PVC.
Key Takeaways
- Medical-grade TPE pairs rubber-like flexibility with thermoplastic processing—no vulcanization step
- Biocompatibility and sterilization performance depend on the specific grade, not the TPE label alone
- ISO 10993, USP Class VI, and ISO 13485 each address a different regulatory requirement
- TPE wins on processing speed and cost; silicone still leads for extreme heat and long-term implants
- Tubing, seals, and respiratory interfaces have the strongest track record for TPE adoption
What Is TPE in Medical Applications?

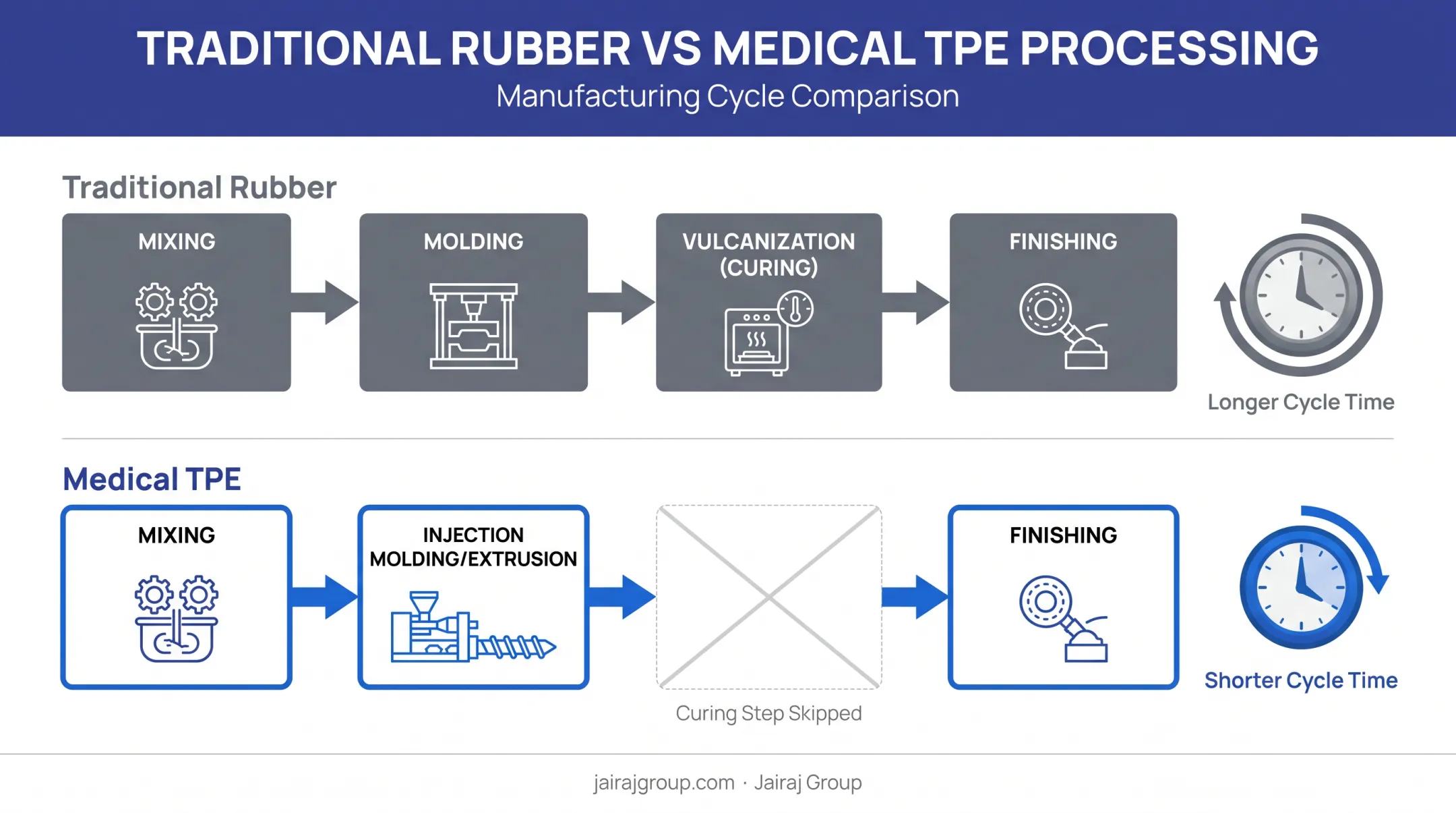

TPE stands for thermoplastic elastomer, a polymer family that behaves like rubber but processes like plastic. Unlike traditional rubber, it can be injection molded, extruded, or overmolded without vulcanization, the curing step that adds time and cost to rubber part production.
In short, medical TPE is a flexible, moldable material that skips a manufacturing step traditional rubber can't avoid.

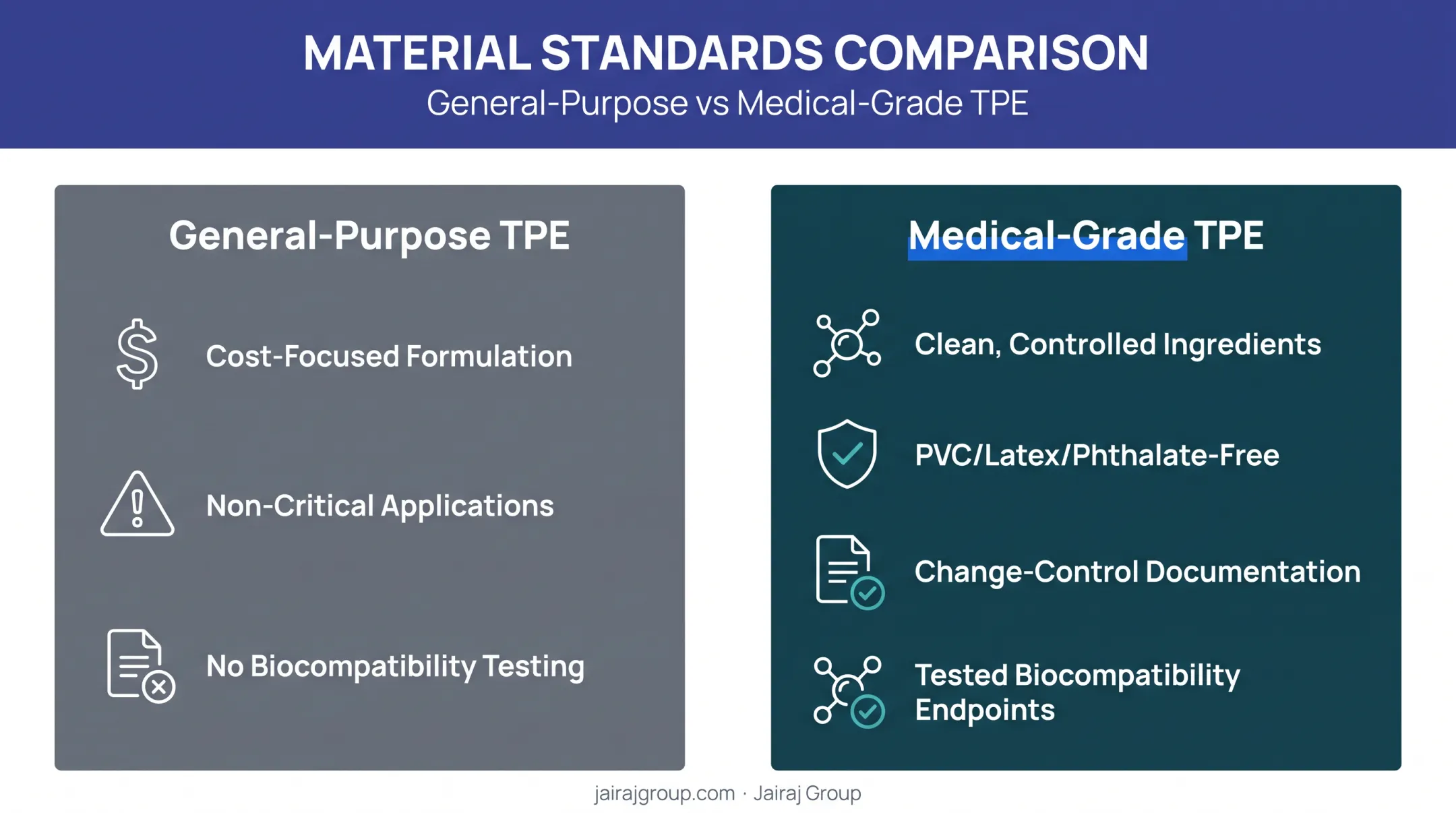

General-Purpose TPE vs. Medical-Grade TPE
General-purpose and medical-grade TPE are not interchangeable. General-purpose TPE is formulated for cost and performance in non-critical applications—think cable jacketing or consumer goods.
Medical-grade TPE is specified to a higher bar:
- Formulated with clean, controlled ingredients and tested to specific biocompatibility endpoints
- Free of PVC, latex, and phthalates, avoiding plasticizer-leaching concerns common in flexible PVC
- Manufactured with change-control documentation so formulations don't shift without notice
- Suitable for skin and tissue contact when the specific grade has been tested for that purpose
The distinction matters because "medical grade" isn't a single certification. It's a claim tied to a specific formulation, test report, and manufacturing site. Always ask suppliers for the exact grade and documentation, not just the label.
Key Benefits of TPE for Medical Device Manufacturing
Biocompatibility and Hypoallergenic Properties
Medical-grade TPEs are tested against ISO 10993 for cytotoxicity, sensitization, and irritation. That testing supports prolonged skin and tissue contact in applications such as wearable straps, mask seals, and cushioning components. These grades help avoid allergic reactions linked to latex or harsh plasticizers.
Sterilization Compatibility
TPE generally holds up well across common sterilization methods:
- EtO (ethylene oxide): Widely compatible across formulations
- Gamma radiation: Commonly used without significant degradation
- Autoclaving: Formulation-dependent, not every grade withstands high-heat steam cycles
Sterilization resistance isn't a blanket TPE property. It depends on the grade, wall thickness, dose, and packaging. Always validate the finished part after the actual sterilization cycle it will undergo.
Softness, Comfort, and Design Flexibility
TPE molds into complex geometries with a soft touch, ideal for:
- Wearable device housings and straps
- Multi-lumen tubing
- Mask seals and cushioning
Because it's thermoplastic, TPE also supports heat sealing and sterile welding, joining methods thermoset silicone simply can't do.
Durability and Chemical Resistance
Medical TPE resists disinfectants and bodily fluids across repeated use cycles. Certain grades offer lower gas permeability and tighter dimensional control than silicone, a real advantage for tubing carrying sensitive fluids or gases.
Cost-Efficiency and Faster Processing
Skipping vulcanization means TPE parts move through injection molding, extrusion, or overmolding faster than rubber. That translates to shorter cycle times and lower tooling investment.
Exact savings still depend on part geometry, cavity count, and validation requirements. Treat generic cost-savings percentages with skepticism until you've run a pilot.
Regulatory Standards and Compliance for Medical TPE
Understanding which standard answers which question saves a lot of confusion during sourcing and validation.
| Standard | What It Covers | Why It Matters |
|---|---|---|
| ISO 10993 | Biological evaluation framework: cytotoxicity, sensitization, irritation | Assesses the finished device, not just the raw material |
| USP Class VI | In-vivo biological reactivity tests (injection, intracutaneous, implantation) | A defined test result, not a substitute for ISO 10993 |
| FDA 21 CFR | US device regulatory framework | FDA does not clear or approve individual materials, only finished devices |
| ISO 13485 | Quality management system for medical device manufacturers | Confirms the supplier's process control, not the material itself |
| RoHS/REACH | Restricts hazardous substances (EU-focused) | Relevant for export markets, not a US FDA substitute |
Critical point: A supplier claiming their TPE is "USP Class VI certified" or "ISO 10993 tested" is describing that grade's test results only.
- Does not automatically cover every batch
- Does not automatically cover every application or contact type
- Request test reports matched to your contact type and exposure duration
TPE vs. Silicone (LSR) and PVC: Choosing the Right Elastomer
| Factor | Medical TPE | Silicone LSR | PVC |
|---|---|---|---|
| Biocompatibility | Strong, grade-dependent | Strong, well-established | Concerns with plasticizer leaching |
| Temperature resistance | Moderate | Superior for extreme heat | Moderate |
| Processing cost | Lower, no curing step | Higher, thermoset processing | Low, but declining due to phthalate concerns |
| Joining methods | Heat sealing, sterile welding | Requires adhesives or overmolding | Heat sealing possible |
| Chemical/gas permeability | Lower in some grades | Higher gas permeability | Moderate |
Silicone still wins for implants, high-heat autoclave cycles, and long-term extreme-condition use. It has decades of clinical history behind it.
TPE increasingly replaces PVC because it contains no phthalates, eliminates leaching risk, and avoids regulatory scrutiny over plasticizers. For cost-sensitive, high-volume production with moderate performance needs, TPE is often the more practical choice.
Quick decision guide:
- Choose TPE for: tubing, wearables, seals, high-volume disposables
- Choose silicone for: implants, repeated autoclave cycles, extreme temperature exposure
- Avoid PVC when phthalate limits, leaching risk, or buyer sustainability rules apply
Common Medical Applications of TPE Components
TPE is used across a wide range of medical device categories:
- Tubing and catheters: single and multi-lumen designs for IV lines, drug delivery, and drainage
- Seals and gaskets: compression seals requiring consistent glide and reseal performance
- Syringe components: plunger stoppers and connectors
- Wearable device housings: straps, casings, and cushioning
- Respiratory masks: gas-tight, low-pressure facial seals, and a documented alternative to flexible PVC in oxygen masks

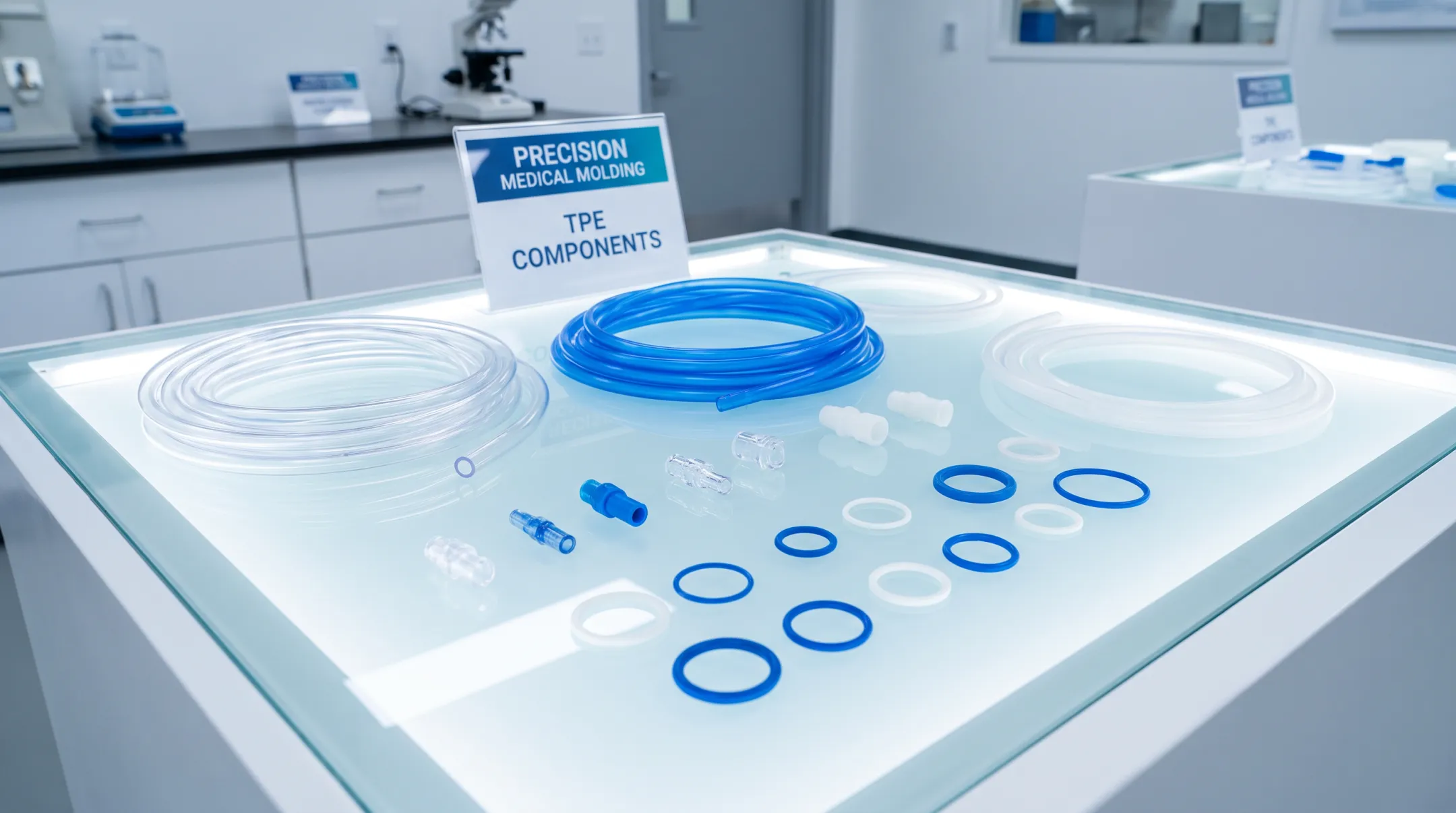

Custom injection molding is central to these parts. Precision tooling turns a general TPE formulation into a tight-tolerance component that fits diagnostic and drug-delivery devices without leaks or fit issues.
Choosing a Manufacturing Partner for Medical-Grade TPE Components
Sourcing decisions for regulated medical components come down to a few non-negotiables:
- In-house tooling — reduces lead time and gives tighter control over dimensional accuracy
- Precision injection molding capability — necessary for the tight tolerances medical components demand
- Testing and documentation — dimensional verification, material-properties testing, and performance validation under simulated conditions
- Traceability — full lot and component traceability to support audits and post-market surveillance
Jairaj Group is one example of how those criteria show up in a real manufacturing operation. Founded in 1985, with multiple facilities across India, the company combines in-house tooling and precision injection molding with ISO 9001:2015-certified quality systems.
It produces biocompatible components from materials such as PEEK, medical-grade ABS, polycarbonate, and TPU for health-monitoring and mobility-assistive devices. Orders ship with dimensional checks, material-properties data, performance validation under simulated conditions, and full lot traceability—so audit and post-market needs are covered without extra chasing.
For regulated medical supply chains, consistency matters as much as capability. In-house tooling, multi-facility capacity, and audit-ready records are what design teams should require when qualifying any TPE component supplier, regardless of which vendor they choose.
Frequently Asked Questions
What does TPE mean in medical?
TPE stands for thermoplastic elastomer, a polymer that combines rubber-like flexibility with thermoplastic processability. In medical applications, it's used for components like tubing, seals, and wearable housings that need softness and moldability.
What is medical grade TPE?
Medical grade TPE is a formulation specifically tested and manufactured to meet biocompatibility and quality standards like ISO 10993 and USP Class VI. It's typically free of PVC, latex, and phthalates, unlike general-purpose TPE.
Is TPE safe for long-term skin contact?
Medical-grade TPE that's tested to relevant ISO 10993 endpoints is generally suitable for prolonged skin contact. Always confirm the specific grade has documentation supporting your intended exposure duration.
Can TPE be sterilized using gamma radiation or autoclaving?
Most medical TPE grades handle EtO and gamma sterilization well. Autoclave compatibility is formulation-dependent, so validate the specific grade and finished part before committing to that sterilization method.
How does TPE compare to silicone in cost and performance?
TPE typically costs less to process because it skips silicone's curing step, and it offers faster cycle times. Silicone still outperforms TPE for extreme heat resistance and long-term implant applications.
What industries use medical-grade TPE besides healthcare?
Medical-grade TPE formulations often cross over into consumer wearables, personal care products, and food-contact applications where similar biocompatibility and softness requirements apply.
