Many buyers struggle to find suppliers who balance precision engineering, material expertise, and consistent quality run after run. A die that produces perfect parts in week one but drifts out of tolerance by week twelve isn't a partner, it's a liability.
This guide covers how custom extrusion works, the profile shapes that solve real engineering problems, material selection criteria, the industries that depend on this process, and how to vet a manufacturing partner before you commit tooling budget.
Key Takeaways
- Custom extrusion yields continuous, uniform profiles for automotive, industrial, electrical, and medical use
- PVC, ABS, polycarbonate, nylon, and TPE each drive different strength, durability, and cost tradeoffs
- Engineer U-channels, Z-profiles, or square tubing around the load and fit you need
- ISO-certified partners with in-house tooling cut lead time and hold dimensional accuracy
What Is Custom Plastic Extrusion?
Custom plastic extrusion forces molten thermoplastic through a precision-engineered die to create a continuous shape with a specific cross-section. Unlike stock profiles pulled from a catalog, custom profiles are designed around an OEM's exact functional and dimensional specifications, from wall thickness to sealing lips to internal cavities.

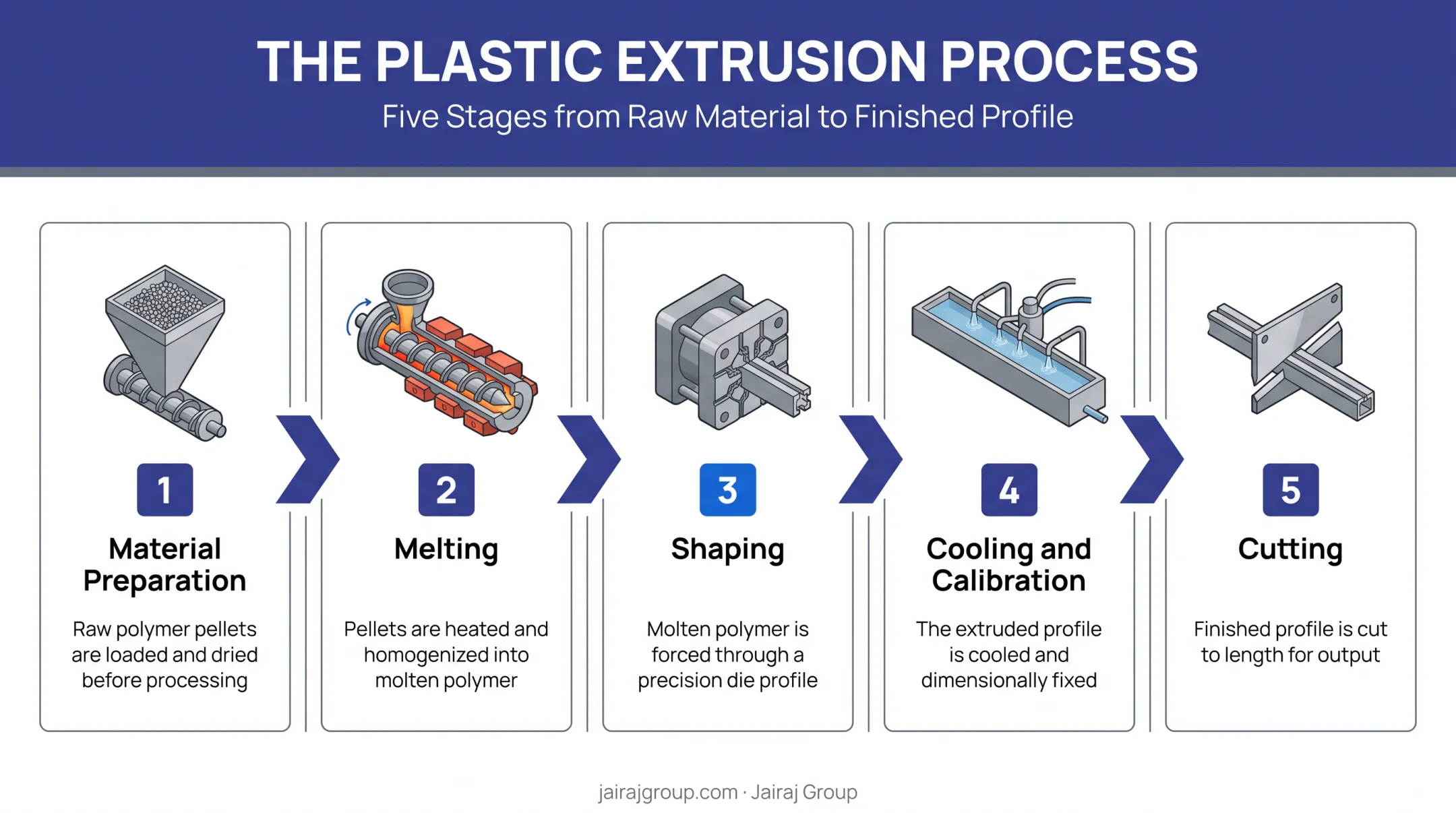

The process runs through five stages:
- Material preparation — resin pellets are dried and fed into the hopper
- Melting — a heated barrel and rotating screw bring the plastic to melt temperature
- Shaping — molten material passes through the die, forming the cross-section
- Cooling and calibration — the profile is sized and solidified, often using vacuum calibration for larger or hollow shapes
- Cutting — the continuous profile is cut to length or coiled
Tolerances and Die Swell
Dimensional accuracy varies by supplier and geometry. Pexco reports dimensional control of ±0.005 inches on profiles exceeding 6 inches tall and 30 inches wide. General engineering references cite approximate flatness tolerances around ±0.004 inches per inch of width. These figures aren't universal. Every quote should specify tolerance by dimension, not by assumption.
One factor that complicates tolerance control is die swell: the tendency of molten plastic to expand slightly as it exits the die. NIST materials research documents this phenomenon. Manufacturers compensate by adjusting die geometry and calibration equipment based on the specific resin and profile shape being run.
Extrusion vs. Injection Molding
Extrusion suits parts that keep a constant cross-section over long lengths. Injection molding handles complex 3D geometries, but tooling costs run higher for simple, linear shapes. If your part is essentially the same shape stretched out, extrusion usually wins on tooling economics.
In-house tool room capability matters here. Manufacturers who design and cut dies internally can iterate on prototype dies faster than those who outsource tooling. That speed helps an OEM validate a profile before committing to production volume.
Common Custom Extruded Profile Shapes and Their Applications

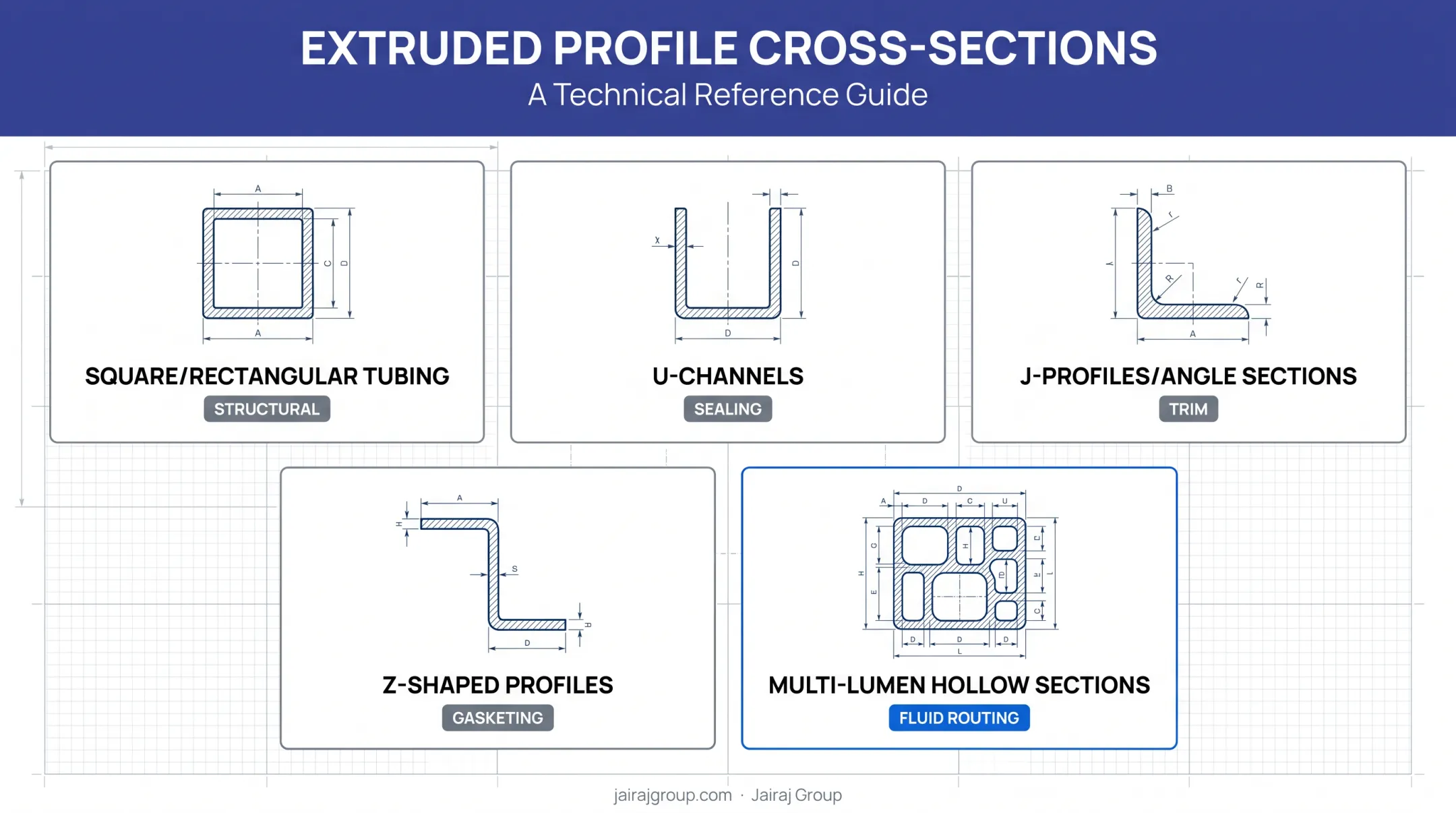

Shape selection should be driven by function first, aesthetics second. Common profiles and where they show up in production:
- Square and rectangular tubing — structural frameworks, equipment enclosures, and supports needing torsional strength
- U-channels — edge protection, glazing seals, and panel retention in construction and automotive assemblies
- J-profiles and angle sections — trim, corner protection, and wire/cable edge finishing
- Z-shaped profiles — weatherstripping and gasketing that need dual-surface compression seals
- Multi-lumen and hollow sections — fluid routing, cable management, lightweight structures, and medical tubing for catheters and drug delivery
None of these shapes is inherently better. A Z-profile that seals a door gasket well is the wrong choice for a structural bracket. Match the cross-section to the load path, sealing surface, or assembly interface during product design—not after tooling is cut.
Choosing the Right Material for Your Custom Profile
Material selection depends on four variables: environmental exposure, mechanical load, temperature range, and chemical resistance. Get this wrong and you'll see premature cracking, UV degradation, or dimensional creep under load.
| Material | Best For | Trade-off |
|---|---|---|
| PVC | Weather-resistant, cost-effective exterior profiles | Lower heat tolerance than engineering plastics |
| ABS | Impact resistance, easy secondary finishing | Less chemical resistance than PP |
| Polycarbonate | High strength, UV and temperature stability | Higher material cost |
| Polypropylene | Chemical and solvent resistance | Lower impact strength in cold conditions |
| Nylon (PA66) | Heat and wear resistance, especially glass-filled | Moisture absorption affects dimensions |
When Standard Resins Aren't Enough
Glass-filled and reinforced polymers extend performance for structural or high-heat applications. Adding glass fiber to nylon 6/6 raises:
- Tensile strength
- Stiffness
- Compressive strength
That combination helps a profile hold shape under sustained mechanical or thermal load.
Match the resin grade to the application's exposure conditions, then verify it against the datasheet—not a generic material family name. Before full production, Jairaj Group runs material-properties analysis, dimensional checks, and stress and temperature-stability tests so a marginal choice is caught before it becomes a field failure.
Which Industries Rely on Custom Extruded Profiles
Custom extrusion serves sectors where consistent cross-sections and long-run reliability matter more than complex geometry:
- Automotive — weather seals and gaskets around doors, windows, and trunks that block water, air, and dust
- Electrical and electronics — cable raceways, cord covers, and wire management channels
- Medical devices — multilumen tubing for catheters, endoscopic devices, and drug delivery systems
- Aerospace — polymer components manufactured under AS9100-certified processes
- Agriculture and heavy equipment — profiles resistant to UV degradation, corrosion, and temperature swings in outdoor use
Jairaj Group has spent four decades serving several of these sectors, supplying precision polymer components to automotive OEMs including Endurance Technologies, Gabriel India, and Tenneco Automotive, plus customers in medical, aerospace, and heavy equipment manufacturing.

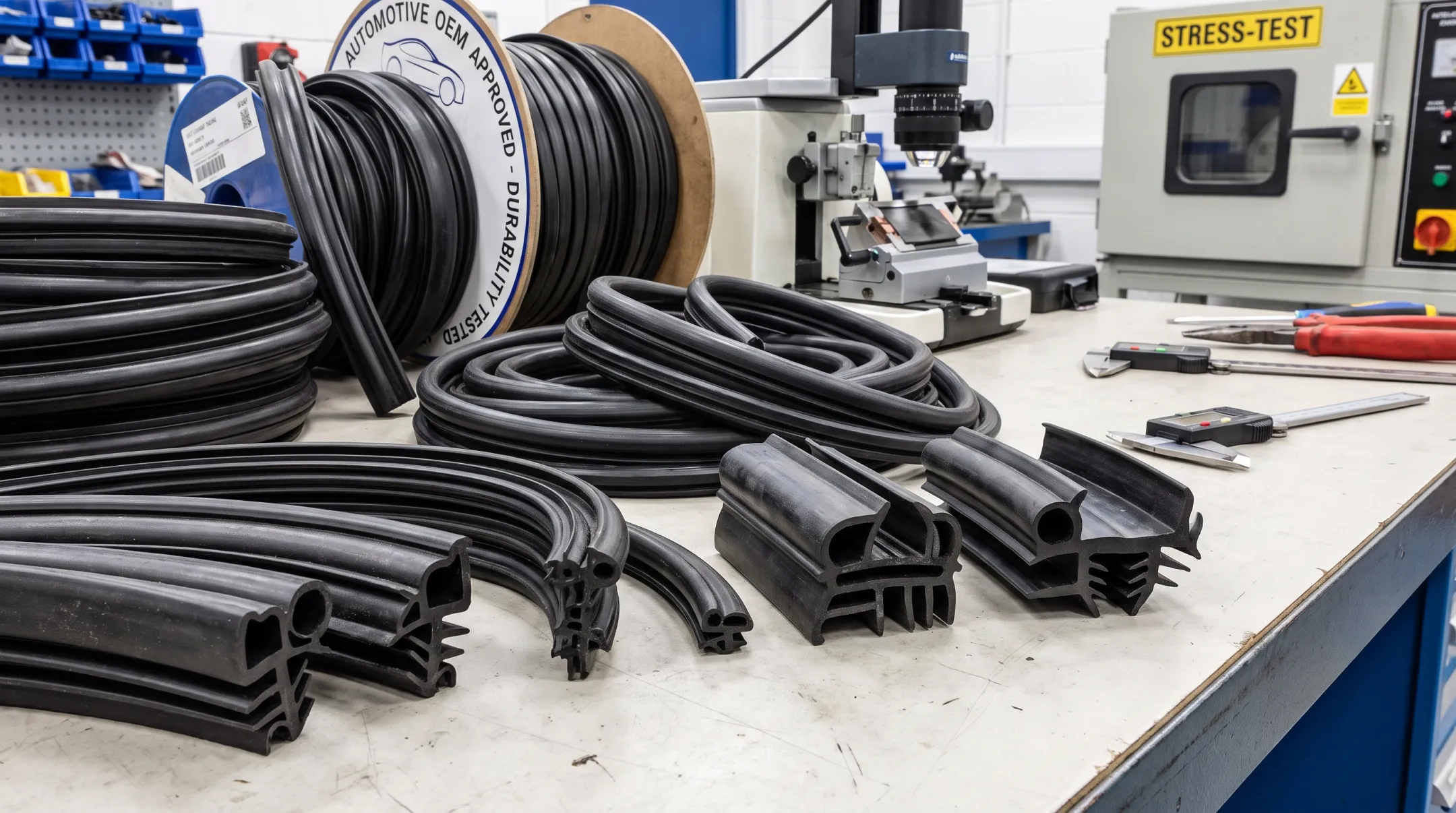

Its documented automotive sealing profiles are engineered for -40°C to +120°C (-40°F to +248°F) operation with UV stabilization and chemical resistance. Those specs match what application-built profiles need to survive in the field.
Benefits of Custom Extrusion Over Standard Profiles
Standard, off-the-shelf profiles force your design to adapt to what's already on a shelf. Custom extrusion flips that.
- Matches your functional and dimensional requirements instead of forcing the design to fit a stock shape
- Lowers per-part cost at scale with continuous production and lower tooling cost than injection molding for constant cross-sections
- Cuts weight and simplifies assembly when profiles are engineered for fit, integration, and equipment protection
The tradeoff is upfront die development. On production volumes that justify the tool, that cost comes back through fewer secondary operations and tighter assembly tolerances downstream.
How to Choose a Custom Extrusion Manufacturing Partner

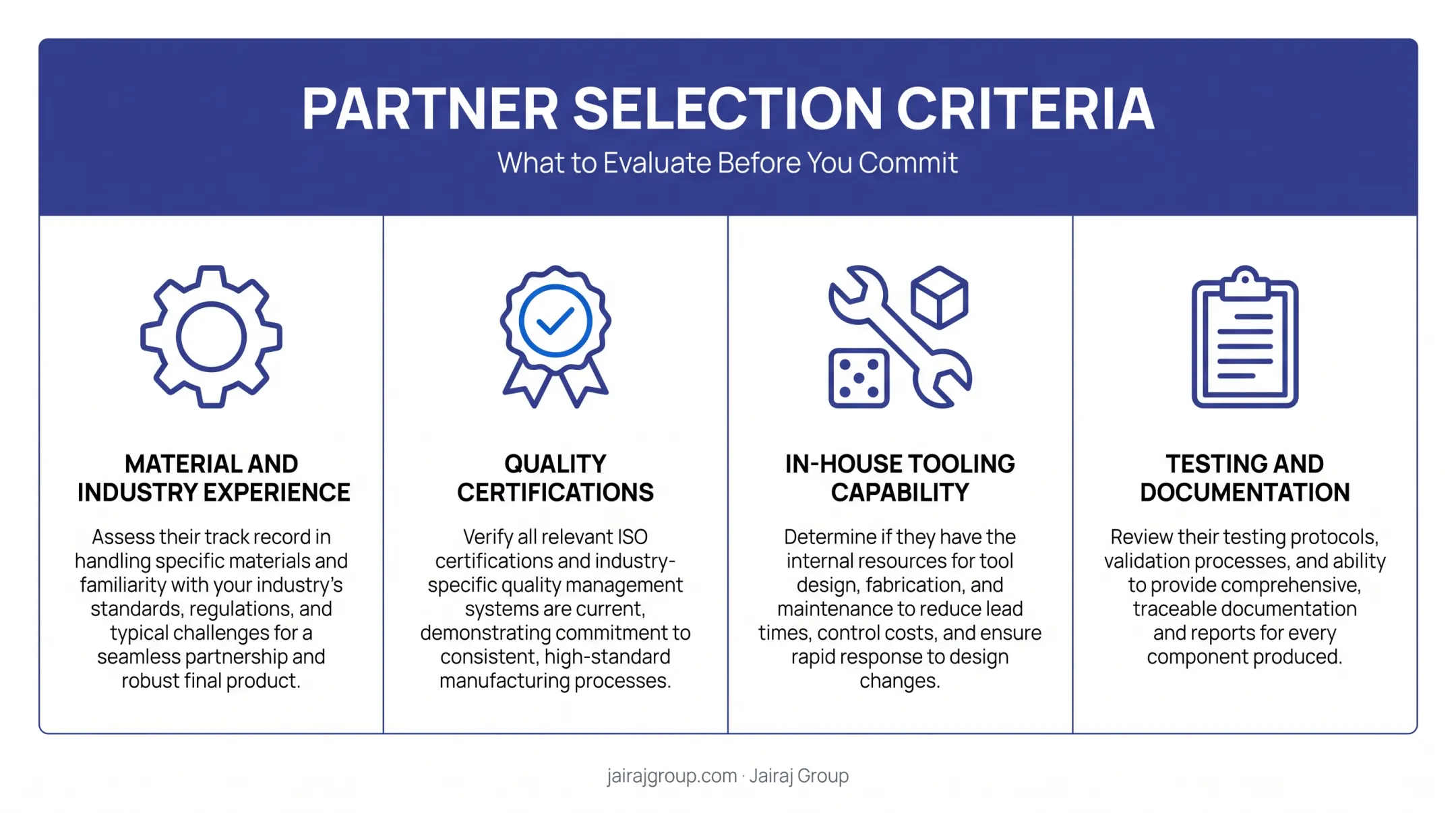

Vetting a supplier on price alone is how buyers end up with inconsistent profiles six months into production. Evaluate these factors instead:
- Experience across materials and industries: a supplier who's only worked with PVC won't necessarily handle glass-filled nylon well
- Quality certifications matched to your end market: ISO 9001:2015 for general quality management, IATF 16949 if you're supplying automotive, ISO 13485 for medical devices
- In-house tool room capability: internal die development shortens iteration cycles versus outsourcing tooling to a third party
- Testing and documentation systems: material certifications, dimensional inspection records, and traceability protect you if a batch needs review later
Jairaj Group has operated since 1985 across six manufacturing facilities in India. The company brings ISO 9001:2015 certification, in-house tooling, and a track record supplying OEMs like Endurance Technologies, Gabriel India, and Tenneco Automotive. Sustained OEM relationships are a solid proxy for consistent quality—automotive buyers don't tolerate dimensional drift for long.
Design Tips for Manufacturable Custom Profiles
Small design decisions early on prevent expensive tooling revisions later:
- Keep wall thickness uniform—uneven walls cool at different rates and warp
- Add corner radii at least equal to wall thickness to ease flow and cut stress
- Skip tight tolerances and complex hollows unless the part truly needs them; each adds die cost and scrap risk
Bring these considerations into the conversation with your extrusion partner during initial design review, not after the first die is already cut.
Frequently Asked Questions
What is plastic extrusion?
Plastic extrusion is a continuous manufacturing process that melts thermoplastic and forces it through a shaped die, producing long products with a uniform cross-section. Cooling, calibration, and cutting follow the die stage.
What is an extruded plastic profile?
It's a shaped plastic component, either standard or custom, produced through extrusion for structural, sealing, or functional use. Common examples include channels, tubing, and trim sections.
What type of plastic is best for extrusion?
There's no single best material. PVC, ABS, polycarbonate, and polypropylene are common high-performing choices, but the right one depends on your chemical exposure, temperature range, and mechanical load requirements.
How long does it take to develop a custom extrusion die?
Timelines vary by complexity and supplier; some suppliers advertise dies in as little as two weeks. In-house tooling capability generally shortens this compared to outsourcing die development to a third party.
What tolerances can custom extruded profiles achieve?
Tolerances are geometry- and supplier-specific. Some manufacturers report ±0.005 inches on larger profiles, but die swell and cross-section complexity both affect what's achievable on any given part.
Can extruded profiles be customized with multiple materials?
Yes, through co-extrusion, which pushes two different thermoplastics through one die simultaneously. This allows combinations like a rigid structural core paired with a softer sealing surface in a single continuous profile.
